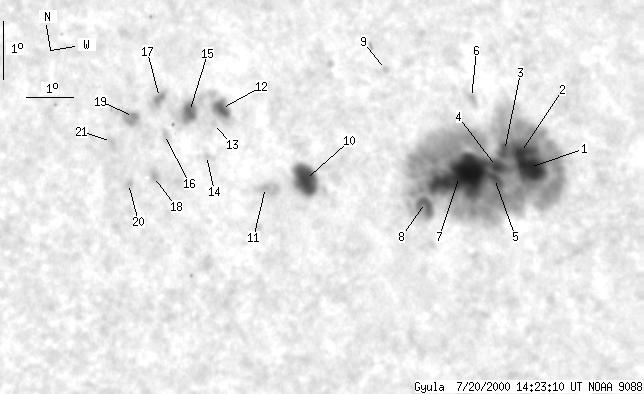

Gyula 2000-07-20 14:24:27 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 59 | 354 | 43 | 261 | 19.88 | 273.41 | 46.72 | 292.58 | 0.7433 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-07-20 14:24:27 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 9 | 291 | 7 | 218 | 19.61 | 275.36 | 48.67 | 291.69 | 0.7636 | |
| 2 | -1 | 1 | -1 | 19.77 | 275.32 | 48.63 | 291.91 | 0.7635 | |
| 1 | -1 | 1 | -1 | 19.93 | 274.98 | 48.30 | 292.20 | 0.7603 | |
| 3 | -1 | 2 | -1 | 19.72 | 274.63 | 47.95 | 292.01 | 0.7562 | |
| 3 | -1 | 2 | -1 | 19.54 | 274.49 | 47.80 | 291.82 | 0.7542 | |
| 0 | 1 | 0 | 1 | 20.86 | 274.72 | 48.04 | 293.46 | 0.7597 | |
| 27 | -1 | 20 | -1 | 19.65 | 273.77 | 47.08 | 292.13 | 0.7468 | |
| 0 | -1 | 0 | -1 | 19.44 | 272.77 | 46.08 | 292.10 | 0.7355 | |
| 0 | 1 | 0 | 0 | 21.59 | 272.99 | 46.29 | 294.90 | 0.7433 | |
| 9 | 20 | 6 | 14 | 20.23 | 270.33 | 43.65 | 293.88 | 0.7106 | |
| 0 | 5 | 0 | 3 | 20.18 | 269.32 | 42.63 | 294.15 | 0.6989 | |
| 2 | 10 | 2 | 7 | 21.57 | 269.08 | 42.40 | 296.15 | 0.7008 | |
| 0 | 0 | 0 | 0 | 21.34 | 268.75 | 42.05 | 295.96 | 0.6962 | |
| 0 | 1 | 0 | 0 | 20.88 | 268.38 | 41.70 | 295.45 | 0.6906 | |
| 3 | 12 | 2 | 8 | 21.63 | 268.38 | 41.69 | 296.50 | 0.6931 | |
| 0 | 1 | 0 | 1 | 21.35 | 267.67 | 40.98 | 296.38 | 0.6841 | |
| 0 | 4 | 0 | 3 | 21.95 | 267.85 | 41.16 | 297.14 | 0.6883 | |
| 0 | 1 | 0 | 1 | 20.73 | 267.12 | 40.43 | 295.72 | 0.6755 | |
| 0 | 4 | 0 | 3 | 21.73 | 267.19 | 40.50 | 297.11 | 0.6800 | |
| 0 | 1 | 0 | 1 | 20.68 | 266.49 | 39.80 | 295.90 | 0.6680 | |
| 0 | 2 | 0 | 1 | 21.40 | 266.48 | 39.79 | 296.93 | 0.6706 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
