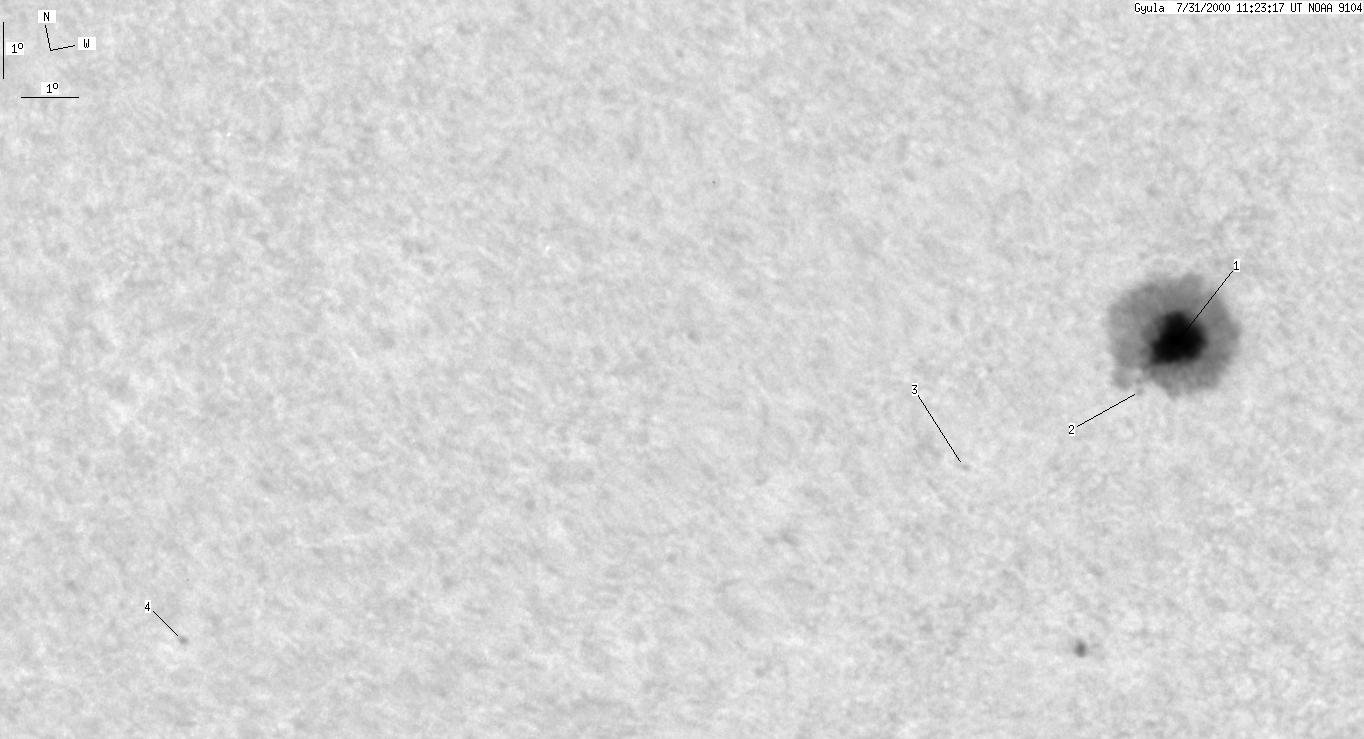

Gyula 2000-07-31 11:23:18 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 39 | 298 | 23 | 174 | -20.19 | 64.32 | -18.52 | 145.60 | 0.5277 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-07-31 11:23:18 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 39 | 293 | 23 | 170 | -20.13 | 64.70 | -18.14 | 145.92 | 0.5237 | |
| 0 | 1 | 0 | 0 | -20.86 | 63.77 | -19.06 | 145.43 | 0.5401 | |
| 0 | 1 | 0 | 1 | -21.70 | 60.33 | -22.51 | 141.93 | 0.5790 | |
| 0 | 3 | 0 | 3 | -23.00 | 44.42 | -38.41 | 128.88 | 0.7370 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
