Gyula 2000-08-02 13:48:38 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 57 | 352 | 32 | 195 | -19.39 | 64.71 | 9.65 | 200.40 | 0.4563 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-08-02 13:48:38 UT |

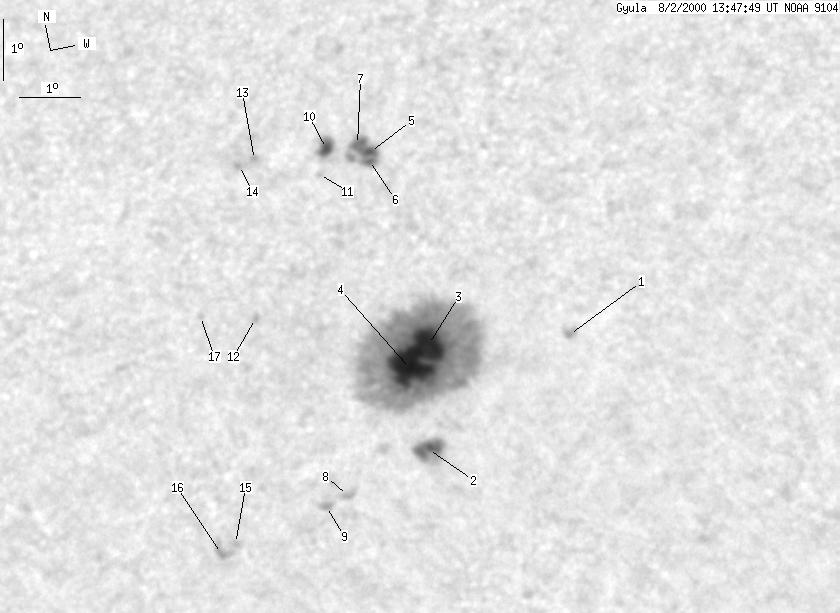

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | -19.89 | 67.40 | 12.35 | 204.91 | 0.4795 | |
| 6 | 12 | 4 | 7 | -21.34 | 64.87 | 9.81 | 199.18 | 0.4853 | |
| 42 | 284 | 23 | 158 | -19.56 | 65.07 | 10.01 | 200.92 | 0.4607 | |
| -3 | -3 | -3 | -3 | -19.88 | 64.72 | 9.67 | 200.00 | 0.4636 | |
| 5 | 25 | 3 | 14 | -16.18 | 64.49 | 9.43 | 202.77 | 0.4083 | |
| 2 | -5 | 1 | -5 | -16.32 | 64.49 | 9.43 | 202.63 | 0.4104 | |
| -5 | -5 | -5 | -5 | -16.01 | 64.33 | 9.28 | 202.61 | 0.4048 | |
| 0 | 2 | 0 | 1 | -21.87 | 63.43 | 8.38 | 196.21 | 0.4863 | |
| 0 | 2 | 0 | 1 | -21.95 | 63.04 | 7.99 | 195.44 | 0.4859 | |
| 2 | 13 | 1 | 7 | -16.02 | 63.81 | 8.76 | 201.45 | 0.4019 | |
| 0 | 1 | 0 | 0 | -16.39 | 63.62 | 8.57 | 200.68 | 0.4063 | |
| 0 | 1 | 0 | 0 | -18.55 | 62.25 | 7.20 | 196.04 | 0.4320 | |
| 0 | 2 | 0 | 1 | -15.95 | 62.63 | 7.57 | 198.83 | 0.3943 | |
| 0 | 3 | 0 | 2 | -16.03 | 62.33 | 7.27 | 198.07 | 0.3940 | |
| 0 | 1 | 0 | 1 | -22.27 | 61.45 | 6.39 | 192.32 | 0.4848 | |
| 0 | 3 | 0 | 2 | -22.36 | 61.17 | 6.12 | 191.76 | 0.4853 | |
| 0 | 1 | 0 | 0 | -18.33 | 61.41 | 6.34 | 194.35 | 0.4251 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
