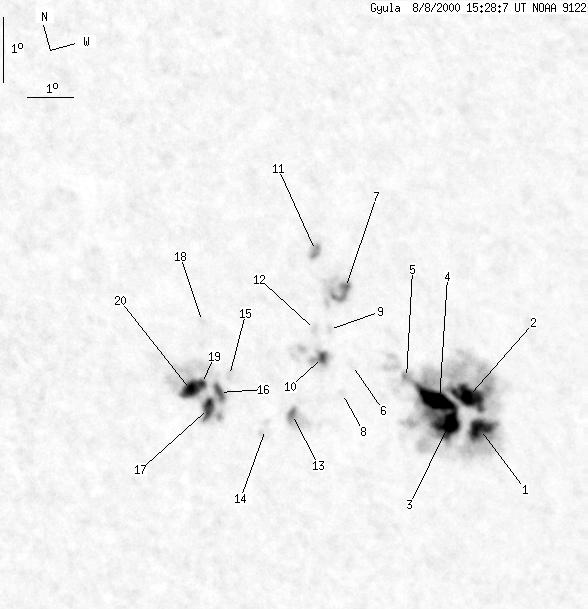

Gyula 2000-08-08 15:28:51 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 60 | 373 | 39 | 237 | 21.26 | 297.25 | -37.55 | 63.80 | 0.6347 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-08-08 15:28:51 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 6 | 250 | 4 | 157 | 20.47 | 299.10 | -35.69 | 64.22 | 0.6092 | |
| 15 | -1 | 9 | -1 | 21.03 | 298.91 | -35.89 | 63.44 | 0.6139 | |
| 23 | -1 | 15 | -1 | 20.72 | 298.50 | -36.30 | 64.11 | 0.6178 | |
| -3 | -1 | -3 | -1 | 20.98 | 298.32 | -36.48 | 63.79 | 0.6209 | |
| 1 | -1 | 0 | -1 | 21.55 | 297.62 | -37.18 | 63.22 | 0.6318 | |
| 0 | 2 | 0 | 1 | 21.88 | 296.48 | -38.32 | 63.23 | 0.6467 | |
| 2 | 17 | 1 | 11 | 23.01 | 296.29 | -38.50 | 61.64 | 0.6535 | |
| 0 | 1 | 0 | 1 | 21.44 | 296.27 | -38.54 | 63.96 | 0.6477 | |
| 0 | 1 | 0 | 1 | 22.50 | 295.99 | -38.81 | 62.51 | 0.6550 | |
| 1 | 18 | 1 | 12 | 22.00 | 295.81 | -38.98 | 63.32 | 0.6551 | |
| 0 | 6 | 0 | 4 | 23.74 | 295.67 | -39.12 | 60.86 | 0.6636 | |
| 0 | 2 | 0 | 1 | 22.55 | 295.69 | -39.12 | 62.57 | 0.6587 | |
| 2 | 9 | 1 | 6 | 21.16 | 295.22 | -39.57 | 64.78 | 0.6590 | |
| 0 | 7 | 0 | 4 | 21.11 | 294.59 | -40.21 | 65.09 | 0.6663 | |
| 0 | 2 | 0 | 1 | 22.03 | 293.83 | -40.97 | 64.04 | 0.6782 | |
| 2 | 57 | 2 | 38 | 21.79 | 293.58 | -41.22 | 64.48 | 0.6803 | |
| 3 | -16 | 2 | -16 | 21.55 | 293.33 | -41.47 | 64.91 | 0.6824 | |
| 0 | 1 | 0 | 0 | 22.91 | 293.19 | -41.60 | 63.04 | 0.6885 | |
| 1 | -16 | 1 | -16 | 21.97 | 293.17 | -41.63 | 64.37 | 0.6857 | |
| 4 | -16 | 3 | -16 | 21.90 | 292.89 | -41.90 | 64.56 | 0.6885 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
