| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 35 | 220 | 33 | 200 | 12.38 | 201.61 | -56.17 | 79.25 | 0.8093 | |
|
previous
or next day for the same group /

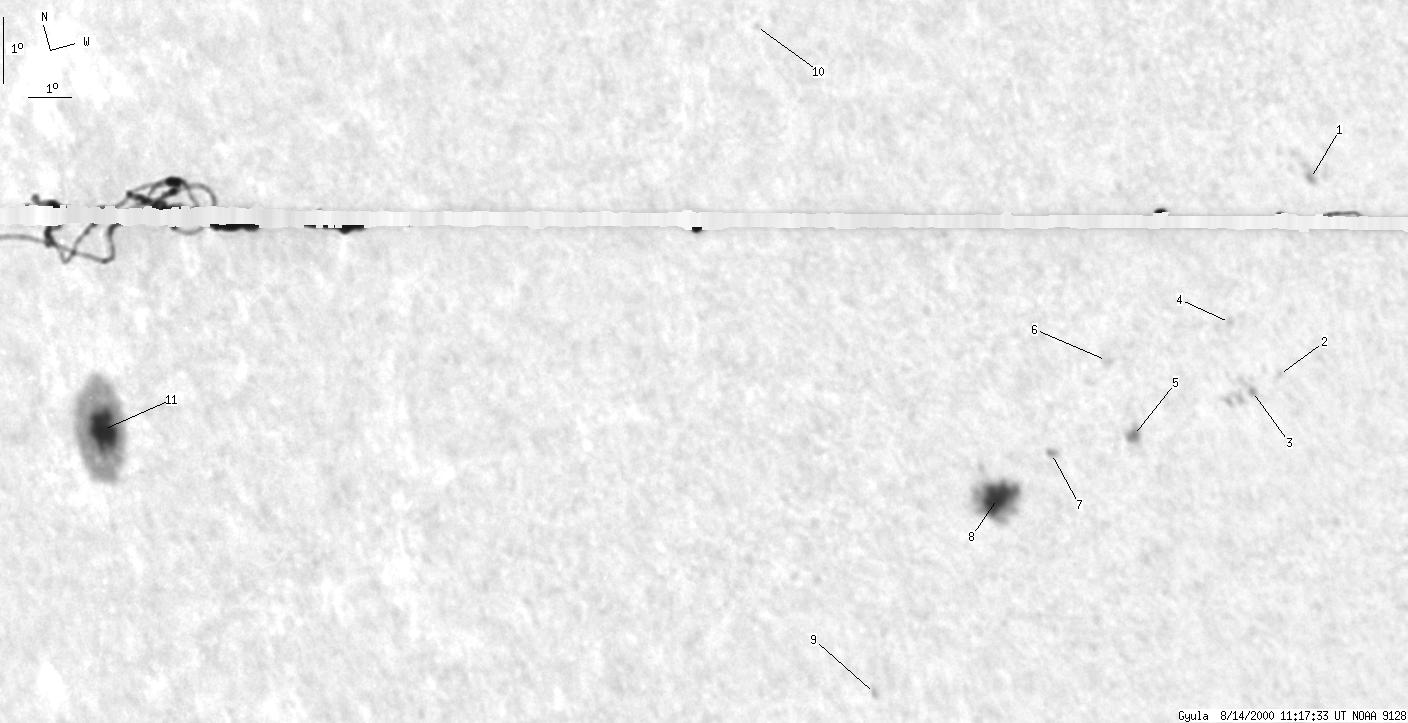

back to the solar disc Gyula 2000-08-14 11:13:47 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 16 | 0 | 10 | 14.38 | 223.06 | -34.72 | 74.32 | 0.5752 | |
| 0 | 1 | 0 | 1 | 11.47 | 221.98 | -35.80 | 79.55 | 0.5851 | |
| 1 | 18 | 1 | 11 | 11.27 | 221.41 | -36.37 | 79.96 | 0.5928 | |
| 0 | 2 | 0 | 1 | 12.38 | 221.16 | -36.62 | 78.14 | 0.5976 | |
| 2 | 7 | 1 | 5 | 10.97 | 218.95 | -38.83 | 80.70 | 0.6259 | |
| 0 | 2 | 0 | 2 | 12.14 | 218.62 | -39.16 | 78.88 | 0.6315 | |
| 0 | 2 | 0 | 1 | 10.91 | 217.24 | -40.53 | 80.93 | 0.6485 | |
| 13 | 58 | 9 | 38 | 10.40 | 216.03 | -41.75 | 81.78 | 0.6640 | |
| 0 | 1 | 0 | 1 | 7.72 | 212.67 | -45.10 | 85.71 | 0.7062 | |
| 0 | 0 | 0 | 0 | 18.16 | 211.70 | -46.08 | 71.16 | 0.7254 | |
| 19 | 113 | 22 | 130 | 13.00 | 192.62 | -65.16 | 78.73 | 0.9034 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
