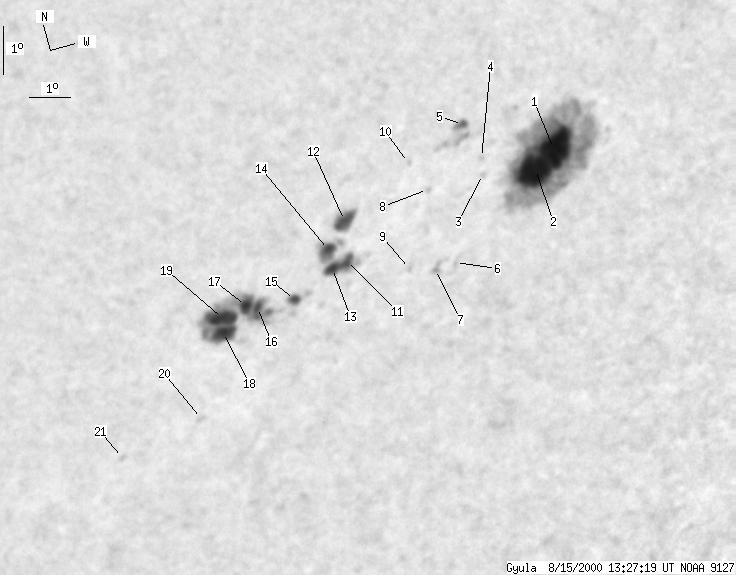

Gyula 2000-08-15 13:28:14 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 46 | 282 | 37 | 218 | -37.39 | 269.47 | 26.11 | 206.96 | 0.7730 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-08-15 13:28:14 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 23 | 184 | 19 | 145 | -36.99 | 271.57 | 28.21 | 209.05 | 0.7796 | |
| -1 | -1 | -1 | -1 | -37.28 | 271.14 | 27.78 | 208.48 | 0.7799 | |
| 0 | 0 | 0 | 0 | -37.03 | 269.93 | 26.57 | 207.66 | 0.7714 | |
| 0 | 0 | 0 | 0 | -36.69 | 269.87 | 26.50 | 207.86 | 0.7680 | |
| 1 | 13 | 1 | 9 | -35.89 | 269.36 | 26.00 | 208.03 | 0.7580 | |
| 0 | 0 | 0 | 0 | -38.71 | 269.50 | 26.14 | 206.07 | 0.7845 | |
| 0 | 2 | 0 | 1 | -38.68 | 269.03 | 25.67 | 205.70 | 0.7820 | |
| 0 | 0 | 0 | 0 | -36.97 | 268.67 | 25.30 | 206.62 | 0.7644 | |
| 0 | 0 | 0 | 0 | -38.49 | 268.40 | 25.03 | 205.30 | 0.7772 | |
| 0 | 0 | 0 | 0 | -36.27 | 268.20 | 24.84 | 206.72 | 0.7554 | |
| 2 | 18 | 1 | 14 | -37.89 | 266.92 | 23.55 | 204.42 | 0.7647 | |
| 4 | 8 | 3 | 6 | -37.01 | 266.84 | 23.48 | 204.97 | 0.7559 | |
| 2 | -11 | 2 | -11 | -37.91 | 266.64 | 23.28 | 204.18 | 0.7636 | |
| 1 | -11 | 1 | -11 | -37.51 | 266.48 | 23.12 | 204.30 | 0.7591 | |
| 1 | 7 | 1 | 5 | -38.31 | 265.74 | 22.38 | 203.11 | 0.7635 | |
| 1 | 48 | 1 | 36 | -38.24 | 264.95 | 21.58 | 202.44 | 0.7593 | |
| 2 | -16 | 1 | -16 | -38.10 | 264.67 | 21.30 | 202.27 | 0.7567 | |
| 5 | -16 | 4 | -16 | -38.53 | 264.20 | 20.84 | 201.58 | 0.7591 | |
| 4 | -16 | 3 | -16 | -38.22 | 264.15 | 20.79 | 201.72 | 0.7558 | |
| 0 | 2 | 0 | 2 | -40.22 | 263.78 | 20.41 | 200.18 | 0.7743 | |
| 0 | 0 | 0 | 0 | -40.55 | 262.00 | 18.64 | 198.41 | 0.7711 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
