| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 25 | 0 | 14 | 21.57 | 249.40 | -27.42 | 57.99 | 0.5029 | |
|
previous
or next day for the same group /

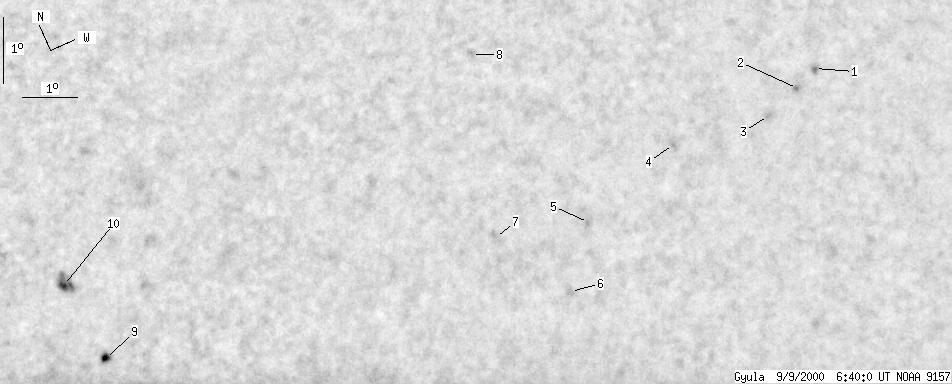

back to the solar disc Gyula 2000-09-09 06:41:11 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 21.48 | 256.87 | -19.95 | 51.47 | 0.4076 | |
| 0 | 2 | 0 | 1 | 21.26 | 256.49 | -20.32 | 52.37 | 0.4103 | |
| 0 | 1 | 0 | 1 | 21.03 | 255.87 | -20.95 | 53.60 | 0.4164 | |
| 0 | 2 | 0 | 1 | 21.11 | 254.10 | -22.72 | 55.38 | 0.4397 | |
| 0 | 2 | 0 | 1 | 20.41 | 252.28 | -24.55 | 58.52 | 0.4584 | |
| 0 | 2 | 0 | 1 | 19.49 | 251.65 | -25.17 | 60.89 | 0.4609 | |
| 0 | 2 | 0 | 1 | 20.68 | 250.57 | -26.26 | 59.43 | 0.4826 | |
| 0 | 3 | 0 | 2 | 23.54 | 250.90 | -25.92 | 53.91 | 0.4979 | |
| 0 | 2 | 0 | 1 | 20.85 | 242.88 | -33.93 | 63.92 | 0.5830 | |
| 0 | 7 | 0 | 4 | 22.15 | 242.26 | -34.55 | 62.12 | 0.5964 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
