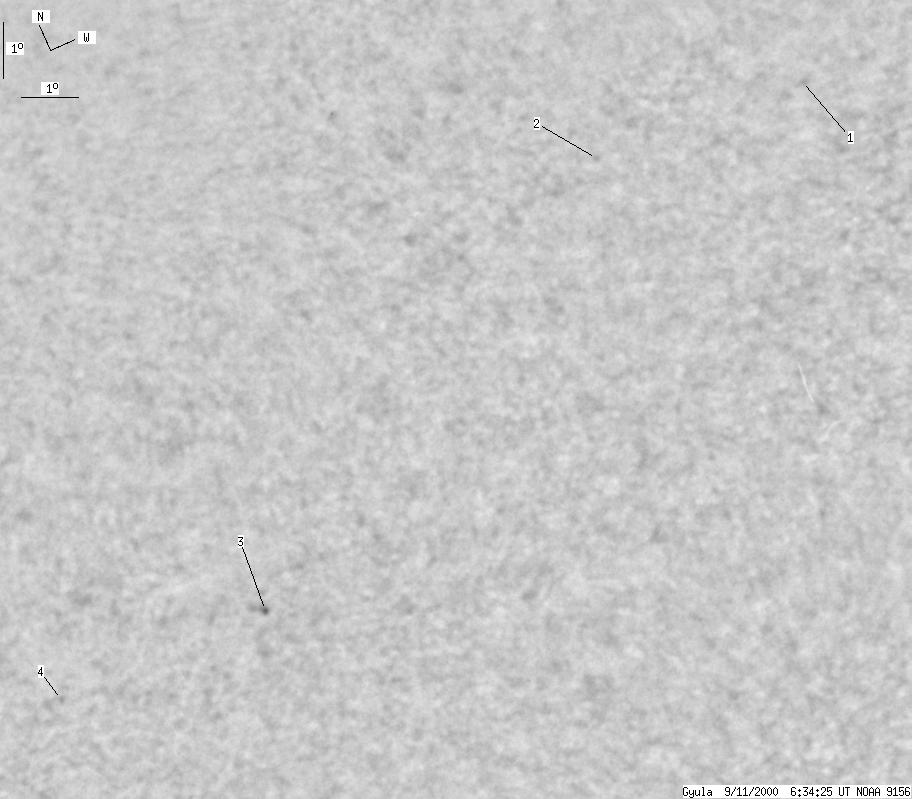

Gyula 2000-09-11 06:35:25 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 12 | 0 | 7 | -27.93 | 255.59 | 5.13 | 188.28 | 0.5897 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-09-11 06:35:25 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 4 | 0 | 2 | -25.04 | 263.44 | 12.97 | 200.95 | 0.5710 | |
| 0 | 1 | 0 | 1 | -24.75 | 259.62 | 9.16 | 195.30 | 0.5498 | |
| 1 | 6 | 0 | 4 | -29.97 | 251.47 | 1.01 | 181.44 | 0.6071 | |
| 0 | 1 | 0 | 0 | -30.00 | 247.52 | -2.94 | 175.80 | 0.6089 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
