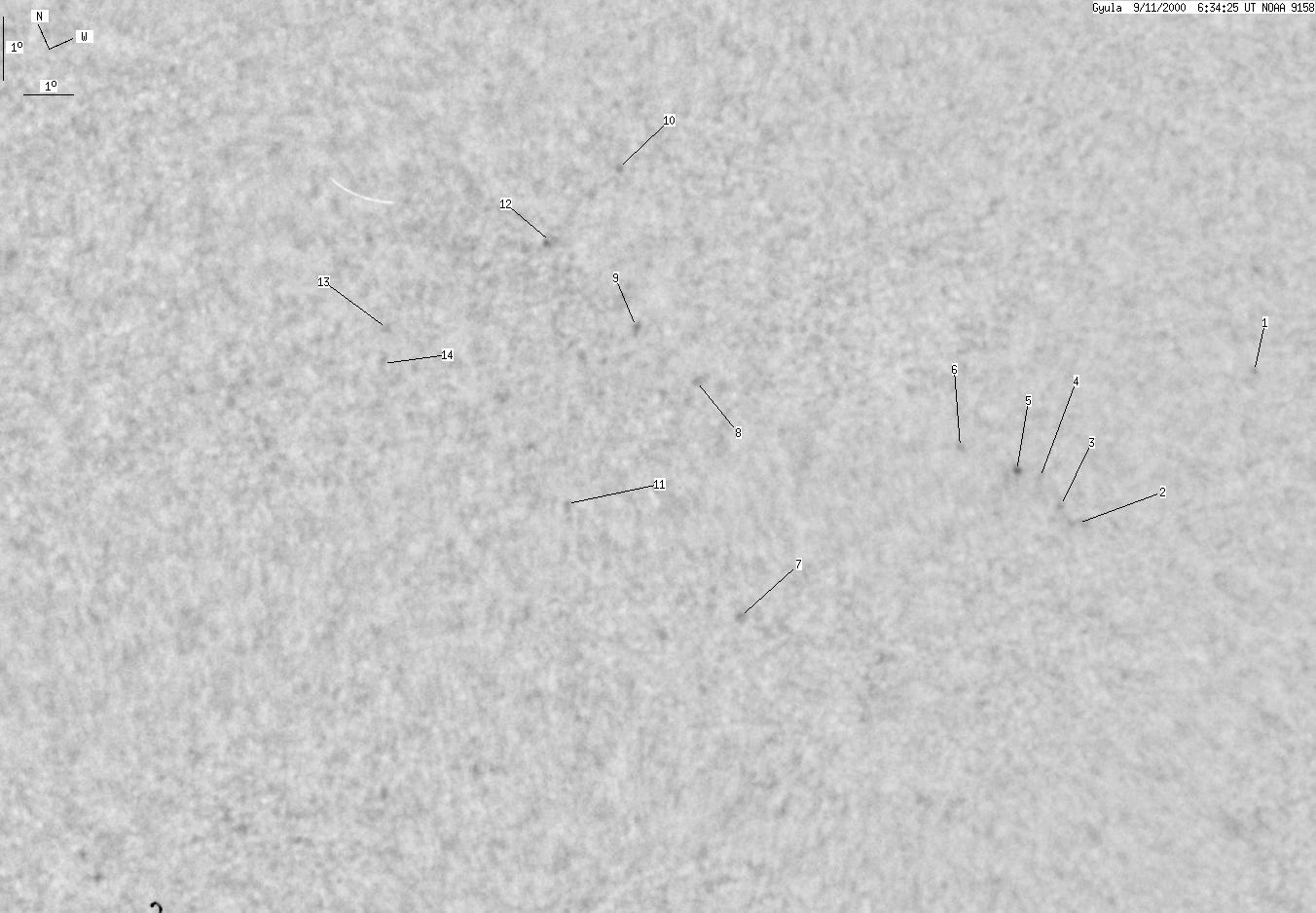

Gyula 2000-09-11 06:35:25 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 29 | 0 | 19 | 28.64 | 225.34 | -25.12 | 44.28 | 0.5288 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-09-11 06:35:25 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 25.89 | 235.51 | -14.95 | 35.64 | 0.3999 | |
| 0 | 4 | 0 | 2 | 24.59 | 231.66 | -18.81 | 43.92 | 0.4244 | |
| 0 | 3 | 0 | 1 | 24.97 | 231.43 | -19.03 | 43.58 | 0.4307 | |
| 0 | 2 | 0 | 1 | 25.52 | 231.20 | -19.27 | 42.93 | 0.4390 | |
| 0 | 1 | 0 | 1 | 25.77 | 230.81 | -19.66 | 43.04 | 0.4457 | |
| 0 | 1 | 0 | 1 | 26.46 | 229.88 | -20.58 | 43.09 | 0.4626 | |
| 0 | 1 | 0 | 1 | 25.09 | 225.04 | -25.42 | 50.76 | 0.5040 | |
| 0 | 1 | 0 | 1 | 29.04 | 225.12 | -25.34 | 44.42 | 0.5368 | |
| 0 | 1 | 0 | 1 | 30.25 | 224.10 | -26.37 | 43.64 | 0.5580 | |
| 0 | 1 | 0 | 1 | 32.93 | 224.24 | -26.22 | 39.85 | 0.5809 | |
| 0 | 1 | 0 | 1 | 27.82 | 222.08 | -28.38 | 49.03 | 0.5589 | |
| 0 | 4 | 0 | 2 | 32.12 | 222.58 | -27.88 | 42.45 | 0.5891 | |
| 0 | 4 | 0 | 3 | 31.63 | 218.80 | -31.67 | 46.18 | 0.6218 | |
| 0 | 3 | 0 | 2 | 31.09 | 218.63 | -31.84 | 47.05 | 0.6194 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
