| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 20 | 0 | 10 | 31.57 | 220.99 | 14.03 | 333.42 | 0.4727 | |
|
previous
day for the same group /

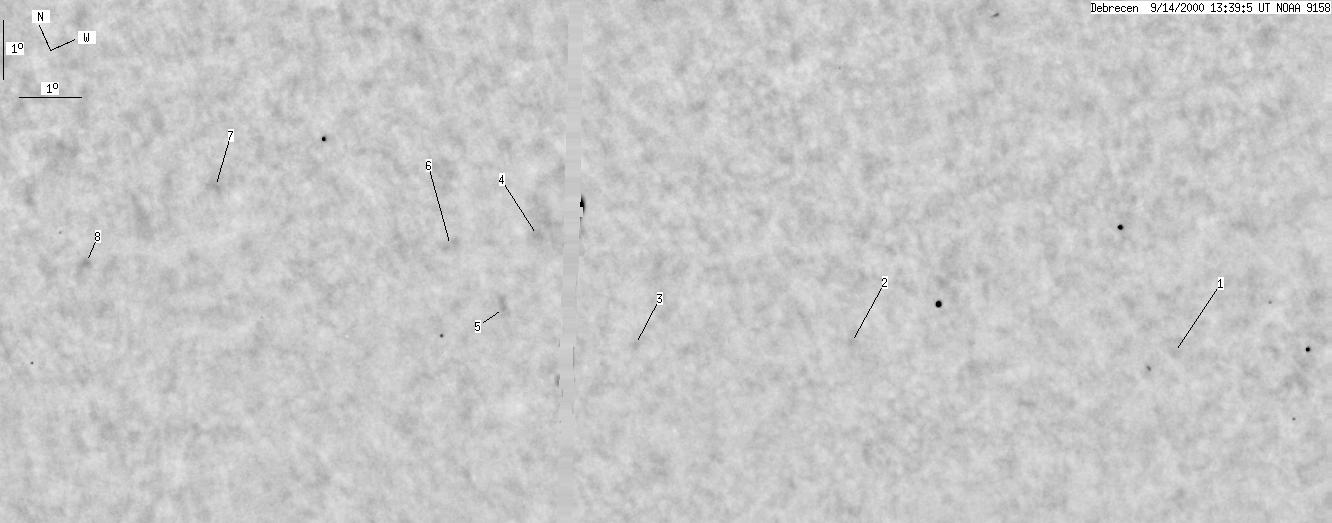

back to the solar disc Debrecen 2000-09-14 13:39:54 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 2 | 0 | 1 | 25.39 | 230.84 | 23.89 | 311.34 | 0.4892 | |
| 0 | 1 | 0 | 0 | 27.73 | 226.11 | 19.16 | 320.84 | 0.4619 | |
| 0 | 2 | 0 | 1 | 29.15 | 222.86 | 15.90 | 327.67 | 0.4492 | |
| 0 | 3 | 0 | 1 | 31.39 | 222.39 | 15.43 | 331.23 | 0.4737 | |
| 0 | 2 | 0 | 1 | 30.59 | 221.16 | 14.23 | 332.14 | 0.4546 | |
| 0 | 4 | 0 | 2 | 31.84 | 220.96 | 14.00 | 333.93 | 0.4695 | |
| 0 | 5 | 0 | 3 | 34.32 | 217.84 | 10.88 | 341.18 | 0.4854 | |
| 0 | 1 | 0 | 1 | 34.05 | 215.13 | 8.17 | 345.41 | 0.4696 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
