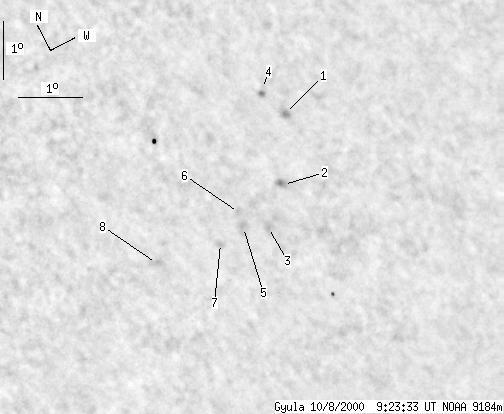

Gyula 2000-10-08 09:25:20 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 21 | 0 | 12 | -13.69 | 229.34 | -23.21 | 131.03 | 0.5096 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-10-08 09:25:20 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 4 | 0 | 2 | -12.89 | 230.48 | -22.06 | 131.23 | 0.4888 | |
| 0 | 3 | 0 | 2 | -13.97 | 229.77 | -22.77 | 131.99 | 0.5074 | |
| 0 | 2 | 0 | 1 | -14.45 | 229.12 | -23.44 | 131.89 | 0.5195 | |
| 0 | 4 | 0 | 2 | -12.35 | 230.30 | -22.26 | 130.10 | 0.4858 | |
| 0 | 3 | 0 | 2 | -14.35 | 228.78 | -23.76 | 131.36 | 0.5222 | |
| 0 | 1 | 0 | 1 | -14.03 | 228.83 | -23.74 | 130.91 | 0.5188 | |
| 0 | 2 | 0 | 1 | -14.44 | 228.31 | -24.24 | 130.93 | 0.5283 | |
| 0 | 2 | 0 | 1 | -14.26 | 227.14 | -25.43 | 129.32 | 0.5400 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
