| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 71 | 558 | 111 | 859 | 3.41 | 256.44 | 71.45 | 271.59 | 0.9465 | |
|
previous
or next day for the same group /

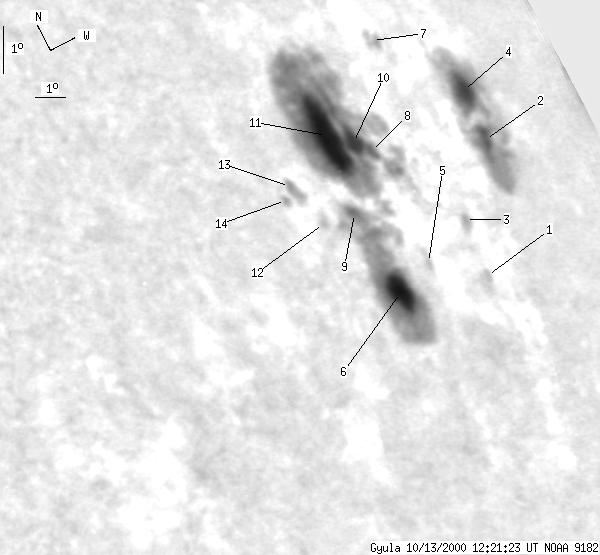

back to the solar disc Gyula 2000-10-13 12:19:29 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 2 | 1.01 | 257.70 | 72.72 | 269.20 | 0.9561 | |
| 6 | 117 | 13 | 246 | 2.51 | 261.37 | 76.38 | 271.13 | 0.9722 | |
| 0 | 3 | 0 | 4 | 1.90 | 258.11 | 73.12 | 270.17 | 0.9577 | |
| 12 | -2 | 25 | -2 | 3.32 | 261.76 | 76.77 | 272.00 | 0.9735 | |
| 0 | 1 | 0 | 1 | 1.82 | 255.52 | 70.54 | 269.82 | 0.9439 | |
| 15 | 424 | 20 | 589 | 1.77 | 253.76 | 68.77 | 269.58 | 0.9333 | |
| 0 | 6 | 0 | 10 | 4.98 | 258.51 | 73.52 | 273.41 | 0.9583 | |
| 2 | -6 | 3 | -6 | 3.70 | 255.73 | 70.76 | 271.82 | 0.9441 | |
| 2 | -6 | 3 | -6 | 3.20 | 253.64 | 68.66 | 271.10 | 0.9318 | |
| 5 | -6 | 7 | -6 | 3.99 | 255.24 | 70.25 | 272.09 | 0.9410 | |
| 29 | -6 | 40 | -6 | 4.37 | 254.31 | 69.32 | 272.41 | 0.9352 | |
| 0 | 1 | 0 | 1 | 3.36 | 252.42 | 67.45 | 271.15 | 0.9238 | |
| 0 | 4 | 0 | 5 | 4.16 | 251.91 | 66.92 | 271.97 | 0.9198 | |
| 0 | 1 | 0 | 1 | 4.02 | 251.64 | 66.65 | 271.79 | 0.9180 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
