Gyula 2000-10-21 06:38:23 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 53 | 0 | 31 | -16.34 | 77.48 | -5.12 | 166.76 | 0.3830 | |
|
previous
or next day for the same group /

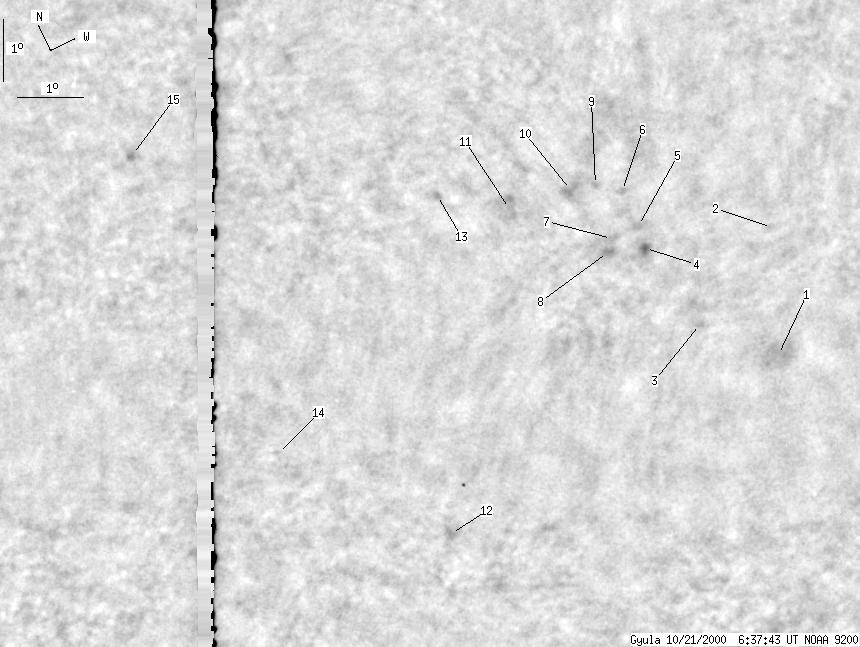

back to the solar disc Gyula 2000-10-21 06:38:23 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 15 | 0 | 8 | -18.56 | 79.66 | -2.93 | 173.17 | 0.4098 | |
| 0 | 2 | 0 | 1 | -16.63 | 80.47 | -2.13 | 174.57 | 0.3774 | |
| 0 | 1 | 0 | 1 | -17.55 | 78.76 | -3.84 | 170.67 | 0.3958 | |
| 1 | 7 | 0 | 4 | -16.05 | 78.54 | -4.06 | 169.44 | 0.3724 | |
| 0 | 1 | 0 | 1 | -15.66 | 78.61 | -3.99 | 169.41 | 0.3661 | |
| 0 | 2 | 0 | 1 | -15.03 | 78.63 | -3.96 | 169.14 | 0.3560 | |
| 0 | 2 | 0 | 1 | -15.66 | 78.14 | -4.46 | 168.19 | 0.3676 | |
| 0 | 3 | 0 | 2 | -15.84 | 77.98 | -4.62 | 167.89 | 0.3709 | |
| 0 | 1 | 0 | 0 | -14.76 | 78.30 | -4.30 | 168.08 | 0.3526 | |
| 0 | 3 | 0 | 2 | -14.66 | 77.91 | -4.69 | 166.98 | 0.3524 | |
| 0 | 5 | 0 | 3 | -14.51 | 76.92 | -5.68 | 164.24 | 0.3541 | |
| 0 | 5 | 0 | 3 | -18.93 | 73.65 | -8.95 | 160.26 | 0.4375 | |
| 0 | 1 | 0 | 1 | -13.83 | 76.01 | -6.59 | 161.23 | 0.3478 | |
| 0 | 1 | 0 | 1 | -16.53 | 71.83 | -10.77 | 154.23 | 0.4137 | |
| 0 | 4 | 0 | 2 | -11.18 | 72.07 | -10.53 | 147.63 | 0.3364 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
