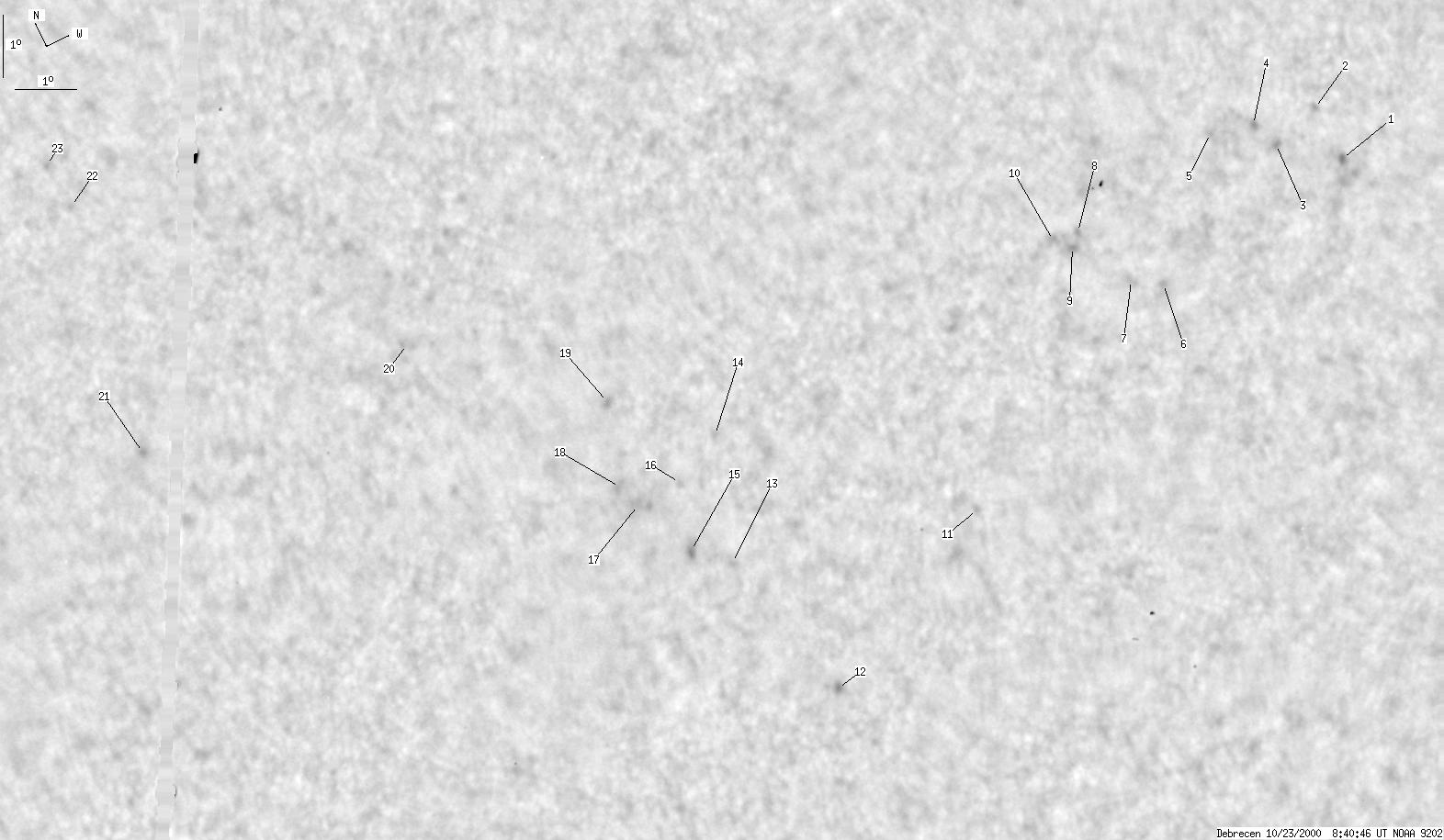

Debrecen 2000-10-23 08:35:35 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 90 | 0 | 53 | 11.81 | 78.54 | 23.45 | 289.03 | 0.4124 | |
|
previous
or next day for the same group /
back to the solar disc Debrecen 2000-10-23 08:35:35 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 18 | 0 | 11 | 11.21 | 86.16 | 31.07 | 283.12 | 0.5219 | |
| 0 | 1 | 0 | 0 | 12.13 | 86.19 | 31.09 | 284.85 | 0.5244 | |
| 0 | 6 | 0 | 4 | 11.88 | 85.21 | 30.12 | 284.71 | 0.5097 | |
| 0 | 7 | 0 | 4 | 12.34 | 85.03 | 29.93 | 285.65 | 0.5083 | |
| 0 | 1 | 0 | 1 | 12.52 | 84.24 | 29.15 | 286.30 | 0.4975 | |
| 0 | 1 | 0 | 1 | 10.70 | 82.14 | 27.04 | 283.37 | 0.4611 | |
| 0 | 3 | 0 | 2 | 10.98 | 81.66 | 26.57 | 284.15 | 0.4547 | |
| 0 | 1 | 0 | 1 | 12.06 | 81.24 | 26.15 | 286.66 | 0.4518 | |
| 0 | 3 | 0 | 2 | 11.87 | 81.02 | 25.93 | 286.36 | 0.4478 | |
| 0 | 3 | 0 | 2 | 12.11 | 80.78 | 25.69 | 287.01 | 0.4451 | |
| 0 | 3 | 0 | 2 | 8.79 | 77.35 | 22.26 | 280.57 | 0.3824 | |
| 0 | 1 | 0 | 1 | 7.20 | 73.87 | 18.77 | 277.20 | 0.3232 | |
| 0 | 3 | 0 | 1 | 9.73 | 73.22 | 18.12 | 285.31 | 0.3193 | |
| 0 | 1 | 0 | 0 | 11.68 | 73.95 | 18.85 | 290.48 | 0.3393 | |
| 0 | 7 | 0 | 4 | 10.18 | 72.69 | 17.59 | 287.11 | 0.3127 | |
| 0 | 3 | 0 | 1 | 11.24 | 73.03 | 17.94 | 290.03 | 0.3229 | |
| 0 | 12 | 0 | 6 | 11.19 | 72.23 | 17.14 | 290.65 | 0.3103 | |
| 0 | 3 | 0 | 2 | 11.58 | 72.10 | 17.00 | 291.98 | 0.3103 | |
| 0 | 5 | 0 | 3 | 12.89 | 72.59 | 17.49 | 295.31 | 0.3255 | |
| 0 | 3 | 0 | 2 | 15.10 | 70.01 | 14.91 | 305.22 | 0.3055 | |
| 0 | 2 | 0 | 1 | 15.32 | 65.23 | 10.14 | 316.30 | 0.2469 | |
| 0 | 1 | 0 | 1 | 19.43 | 66.05 | 10.96 | 324.14 | 0.3073 | |
| 0 | 2 | 0 | 1 | 20.21 | 66.02 | 10.92 | 325.75 | 0.3173 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
