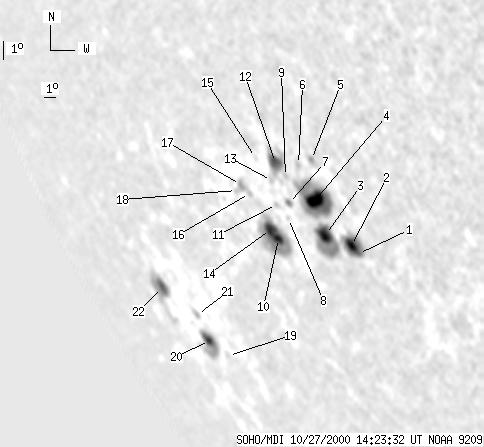

SOHO MDI 2000-10-27 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 118 | 676 | 118 | 711 | -24.25 | 303.00 | -56.14 | 120.99 | 0.8771 | |
|
previous
or next day for the same group /
back to the solar disc SOHO MDI 2000-10-27 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 4 | 60 | 3 | 53 | -24.24 | 310.22 | -48.92 | 123.71 | 0.8285 | |
| 11 | -1 | 10 | -1 | -23.91 | 309.93 | -49.21 | 123.22 | 0.8295 | |
| 21 | 88 | 19 | 80 | -23.53 | 308.42 | -50.72 | 122.14 | 0.8402 | |
| 23 | 152 | 20 | 135 | -22.02 | 308.54 | -50.60 | 120.51 | 0.8337 | |
| 0 | 11 | 0 | 10 | -20.29 | 309.09 | -50.05 | 118.79 | 0.8227 | |
| 0 | 6 | 0 | 5 | -20.56 | 308.12 | -51.02 | 118.71 | 0.8320 | |
| 1 | 7 | 1 | 6 | -22.33 | 306.56 | -52.58 | 120.05 | 0.8508 | |
| 0 | 3 | 0 | 3 | -23.00 | 306.19 | -52.95 | 120.63 | 0.8560 | |
| 0 | 4 | 0 | 4 | -21.15 | 306.97 | -52.17 | 118.90 | 0.8436 | |
| 10 | 129 | 10 | 129 | -23.95 | 304.91 | -54.23 | 121.17 | 0.8687 | |
| 0 | 4 | 0 | 3 | -22.43 | 305.67 | -53.48 | 119.81 | 0.8582 | |
| 18 | 51 | 17 | 47 | -20.58 | 306.57 | -52.57 | 118.12 | 0.8450 | |
| 0 | 5 | 0 | 5 | -21.39 | 305.88 | -53.26 | 118.76 | 0.8532 | |
| 15 | -10 | 15 | -10 | -23.58 | 304.55 | -54.59 | 120.65 | 0.8702 | |
| 0 | 4 | 0 | 3 | -20.46 | 305.25 | -53.89 | 117.49 | 0.8554 | |
| 0 | 5 | 0 | 5 | -22.08 | 303.92 | -55.22 | 118.79 | 0.8705 | |
| 0 | 9 | 0 | 9 | -21.73 | 303.46 | -55.68 | 118.25 | 0.8729 | |
| 0 | 2 | 0 | 3 | -22.02 | 302.99 | -56.15 | 118.40 | 0.8772 | |
| 0 | 4 | 0 | 5 | -29.84 | 295.72 | -63.43 | 124.23 | 0.9399 | |
| 7 | 46 | 11 | 69 | -29.25 | 294.46 | -64.68 | 123.29 | 0.9449 | |
| 0 | 6 | 0 | 9 | -28.07 | 294.59 | -64.55 | 122.12 | 0.9422 | |
| 8 | 80 | 12 | 128 | -27.07 | 292.01 | -67.13 | 120.44 | 0.9530 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
