Gyula 2000-11-01 09:39:46 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 27 | 130 | 22 | 98 | 19.28 | 249.34 | -46.53 | 67.71 | 0.7421 | |
|
previous
or next day for the same group /

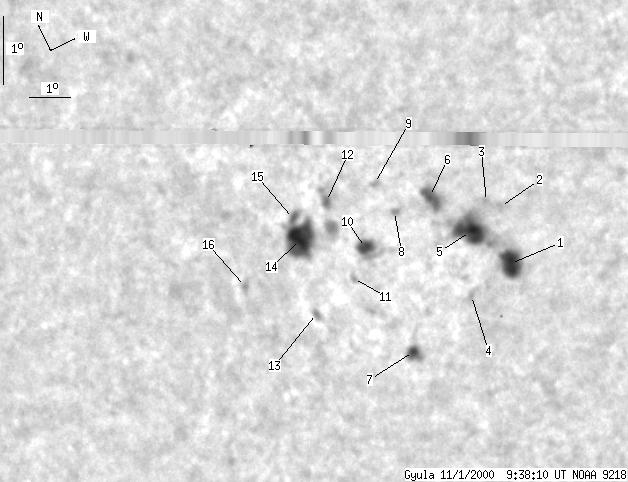

back to the solar disc Gyula 2000-11-01 09:39:46 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 49 | 4 | 35 | 18.34 | 251.95 | -43.92 | 68.27 | 0.7111 | |
| 0 | 1 | 0 | 1 | 19.25 | 251.97 | -43.92 | 67.02 | 0.7136 | |
| 0 | 1 | 0 | 1 | 19.39 | 251.68 | -44.21 | 66.91 | 0.7173 | |
| 0 | 1 | 0 | 1 | 18.09 | 250.92 | -44.96 | 68.90 | 0.7224 | |
| 6 | -1 | 5 | -1 | 19.03 | 251.23 | -44.64 | 67.53 | 0.7212 | |
| 1 | 11 | 1 | 8 | 19.74 | 250.43 | -45.44 | 66.81 | 0.7319 | |
| 1 | 3 | 1 | 3 | 17.55 | 249.38 | -46.49 | 70.02 | 0.7381 | |
| 0 | 1 | 0 | 1 | 19.76 | 249.54 | -46.35 | 67.04 | 0.7418 | |
| 0 | 1 | 0 | 1 | 20.29 | 249.12 | -46.76 | 66.46 | 0.7476 | |
| 1 | 11 | 1 | 8 | 19.34 | 248.64 | -47.23 | 67.84 | 0.7503 | |
| 0 | 1 | 0 | 0 | 18.96 | 248.31 | -47.58 | 68.43 | 0.7531 | |
| 1 | 4 | 0 | 3 | 20.27 | 247.89 | -47.99 | 66.83 | 0.7605 | |
| 0 | 1 | 0 | 1 | 18.62 | 247.28 | -48.59 | 69.11 | 0.7631 | |
| 11 | 43 | 9 | 33 | 19.80 | 247.15 | -48.73 | 67.62 | 0.7671 | |
| 1 | -14 | 1 | -14 | 20.06 | 247.10 | -48.78 | 67.30 | 0.7682 | |
| 0 | 2 | 0 | 2 | 19.37 | 245.59 | -50.28 | 68.52 | 0.7821 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
