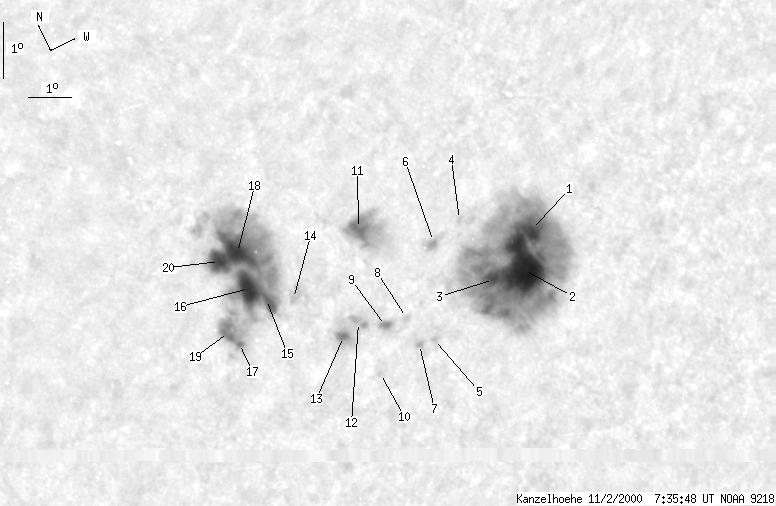

Kanzelhoehe 2000-11-02 07:35:48 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 116 | 722 | 72 | 445 | 19.40 | 250.32 | -33.50 | 62.21 | 0.5896 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-11-02 07:35:48 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 62 | 391 | 37 | 232 | 19.11 | 253.51 | -30.31 | 60.80 | 0.5485 | |
| -1 | -1 | -1 | -1 | 18.45 | 253.12 | -30.70 | 62.16 | 0.5498 | |
| -1 | -1 | -1 | -1 | 18.51 | 252.40 | -31.42 | 62.51 | 0.5595 | |
| 0 | 1 | 0 | 0 | 19.79 | 251.99 | -31.83 | 60.66 | 0.5715 | |
| 0 | 1 | 0 | 1 | 17.89 | 250.76 | -33.06 | 64.49 | 0.5775 | |
| 0 | 11 | 0 | 7 | 19.59 | 251.29 | -32.53 | 61.42 | 0.5791 | |
| 0 | 1 | 0 | 1 | 17.91 | 250.40 | -33.42 | 64.65 | 0.5822 | |
| 0 | 1 | 0 | 1 | 18.46 | 250.26 | -33.56 | 63.82 | 0.5865 | |
| 0 | 2 | 0 | 1 | 18.47 | 249.75 | -34.07 | 64.08 | 0.5931 | |
| 0 | 1 | 0 | 1 | 17.68 | 249.36 | -34.46 | 65.55 | 0.5945 | |
| 3 | 48 | 2 | 30 | 20.33 | 249.67 | -34.15 | 61.19 | 0.6031 | |
| 0 | 6 | 0 | 4 | 18.71 | 249.15 | -34.67 | 64.01 | 0.6016 | |
| 1 | 11 | 1 | 7 | 18.57 | 248.73 | -35.09 | 64.44 | 0.6063 | |
| 0 | 3 | 0 | 2 | 19.57 | 247.79 | -36.03 | 63.36 | 0.6224 | |
| 5 | 245 | 3 | 158 | 19.73 | 247.15 | -36.67 | 63.41 | 0.6309 | |
| 13 | -15 | 8 | -15 | 20.05 | 246.78 | -37.04 | 63.12 | 0.6367 | |
| 1 | -15 | 1 | -15 | 19.16 | 246.27 | -37.55 | 64.69 | 0.6391 | |
| 28 | -15 | 18 | -15 | 20.75 | 246.70 | -37.12 | 62.11 | 0.6408 | |
| 3 | -15 | 2 | -15 | 19.42 | 246.07 | -37.75 | 64.38 | 0.6427 | |
| -18 | -15 | -18 | -15 | 20.72 | 246.22 | -37.60 | 62.40 | 0.6463 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
