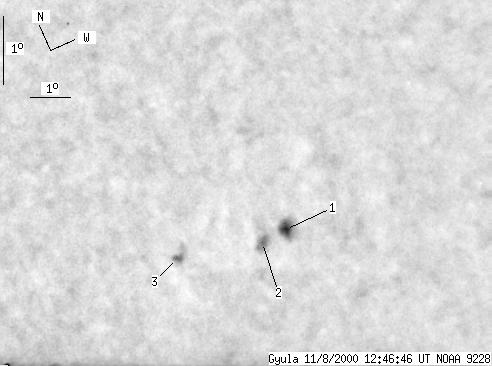

Gyula 2000-11-08 12:47:27 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 17 | 2 | 12 | 20.75 | 154.25 | -47.61 | 65.50 | 0.7611 | |
|
next day for the same group /
back to the solar disc Gyula 2000-11-08 12:47:27 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 10 | 2 | 7 | 20.75 | 154.86 | -47.00 | 65.33 | 0.7549 | |
| 0 | 4 | 0 | 3 | 20.69 | 154.27 | -47.59 | 65.58 | 0.7609 | |
| 0 | 3 | 0 | 2 | 20.87 | 152.11 | -49.75 | 65.96 | 0.7832 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
