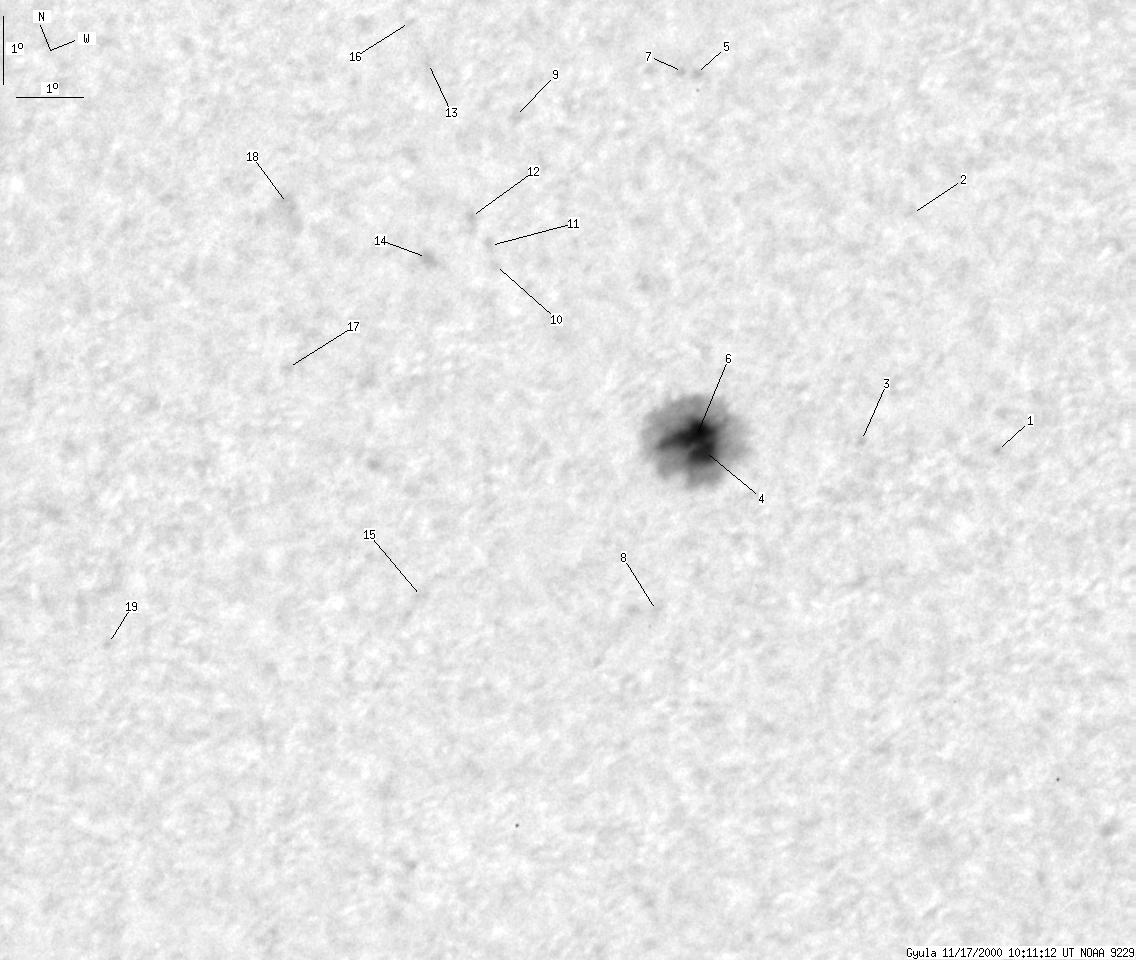

Gyula 2000-11-17 10:09:41 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 28 | 214 | 14 | 113 | 6.29 | 99.68 | 15.04 | 284.79 | 0.2696 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-11-17 10:09:41 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 3 | 0 | 2 | 3.91 | 104.23 | 19.60 | 274.59 | 0.3372 | |
| 0 | 3 | 0 | 2 | 7.71 | 104.42 | 19.78 | 285.50 | 0.3496 | |
| 0 | 1 | 0 | 0 | 4.80 | 102.28 | 17.64 | 277.88 | 0.3063 | |
| 0 | 1 | 0 | 1 | 10.87 | 102.12 | 17.48 | 296.53 | 0.3312 | |
| 28 | 178 | 14 | 92 | 5.71 | 99.90 | 15.26 | 282.31 | 0.2693 | |
| 0 | 1 | 0 | 1 | 10.96 | 101.97 | 17.32 | 296.98 | 0.3294 | |
| 0 | 3 | 0 | 1 | 3.54 | 98.35 | 13.70 | 274.60 | 0.2383 | |
| 0 | 1 | 0 | 1 | 11.26 | 99.19 | 14.56 | 301.87 | 0.2916 | |
| 0 | 1 | 0 | 1 | 9.27 | 98.02 | 13.38 | 297.48 | 0.2586 | |
| 0 | 3 | 0 | 2 | 9.56 | 98.04 | 13.40 | 298.44 | 0.2611 | |
| 0 | 2 | 0 | 1 | 10.04 | 97.93 | 13.28 | 300.26 | 0.2632 | |
| 0 | 3 | 0 | 1 | 12.49 | 98.26 | 13.62 | 307.16 | 0.2899 | |
| 0 | 4 | 0 | 2 | 9.74 | 97.06 | 12.42 | 300.87 | 0.2481 | |
| 0 | 2 | 0 | 1 | 4.98 | 95.01 | 10.37 | 283.69 | 0.1855 | |
| 0 | 1 | 0 | 1 | 13.20 | 98.28 | 13.64 | 309.11 | 0.2971 | |
| 0 | 1 | 0 | 1 | 8.93 | 94.40 | 9.77 | 303.81 | 0.2027 | |
| 0 | 3 | 0 | 2 | 11.26 | 95.42 | 10.78 | 309.79 | 0.2397 | |
| 0 | 3 | 0 | 1 | 5.99 | 90.29 | 5.66 | 301.81 | 0.1159 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
