Gyula 2000-11-25 09:44:35 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 48 | 366 | 29 | 229 | -19.79 | 307.95 | -31.49 | 126.23 | 0.6114 | |
|
previous
or next day for the same group /

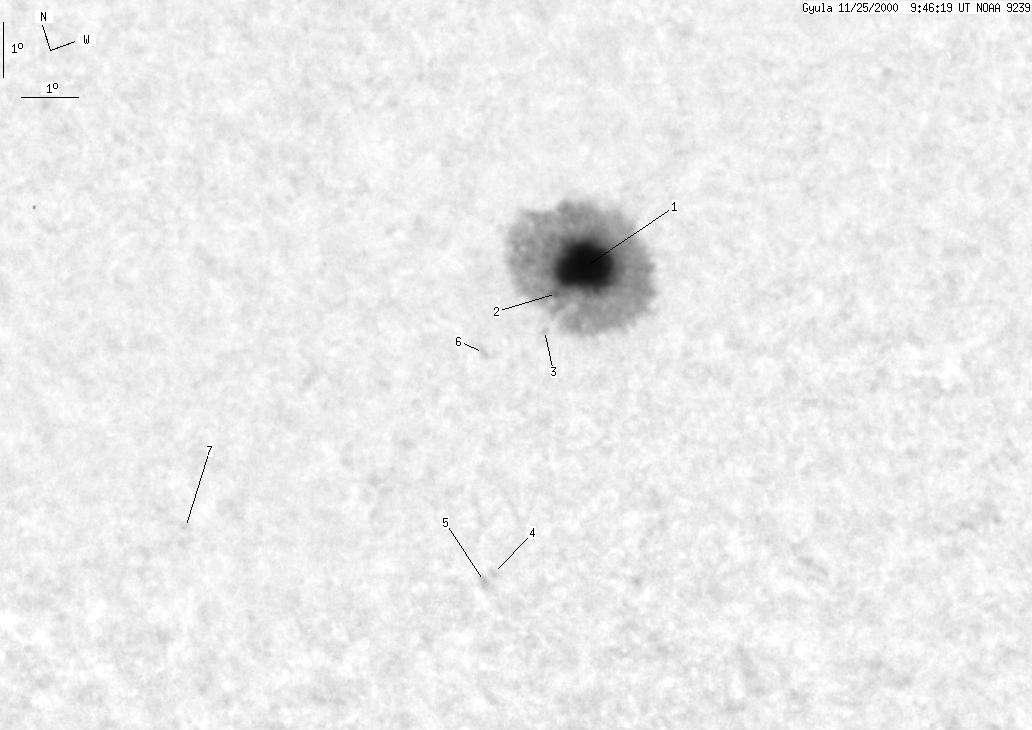

back to the solar disc Gyula 2000-11-25 09:44:35 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 47 | 359 | 29 | 224 | -19.72 | 308.10 | -31.34 | 126.24 | 0.6094 | |
| 1 | -1 | 0 | -1 | -20.07 | 307.44 | -31.98 | 126.23 | 0.6190 | |
| 0 | 1 | 0 | 0 | -20.59 | 306.88 | -32.53 | 126.52 | 0.6288 | |
| 0 | 1 | 0 | 1 | -24.20 | 303.45 | -35.97 | 128.73 | 0.6891 | |
| 0 | 2 | 0 | 1 | -24.25 | 303.15 | -36.28 | 128.58 | 0.6925 | |
| 0 | 1 | 0 | 1 | -20.65 | 305.62 | -33.79 | 125.66 | 0.6429 | |
| 0 | 2 | 0 | 2 | -22.02 | 298.33 | -41.09 | 122.86 | 0.7277 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
