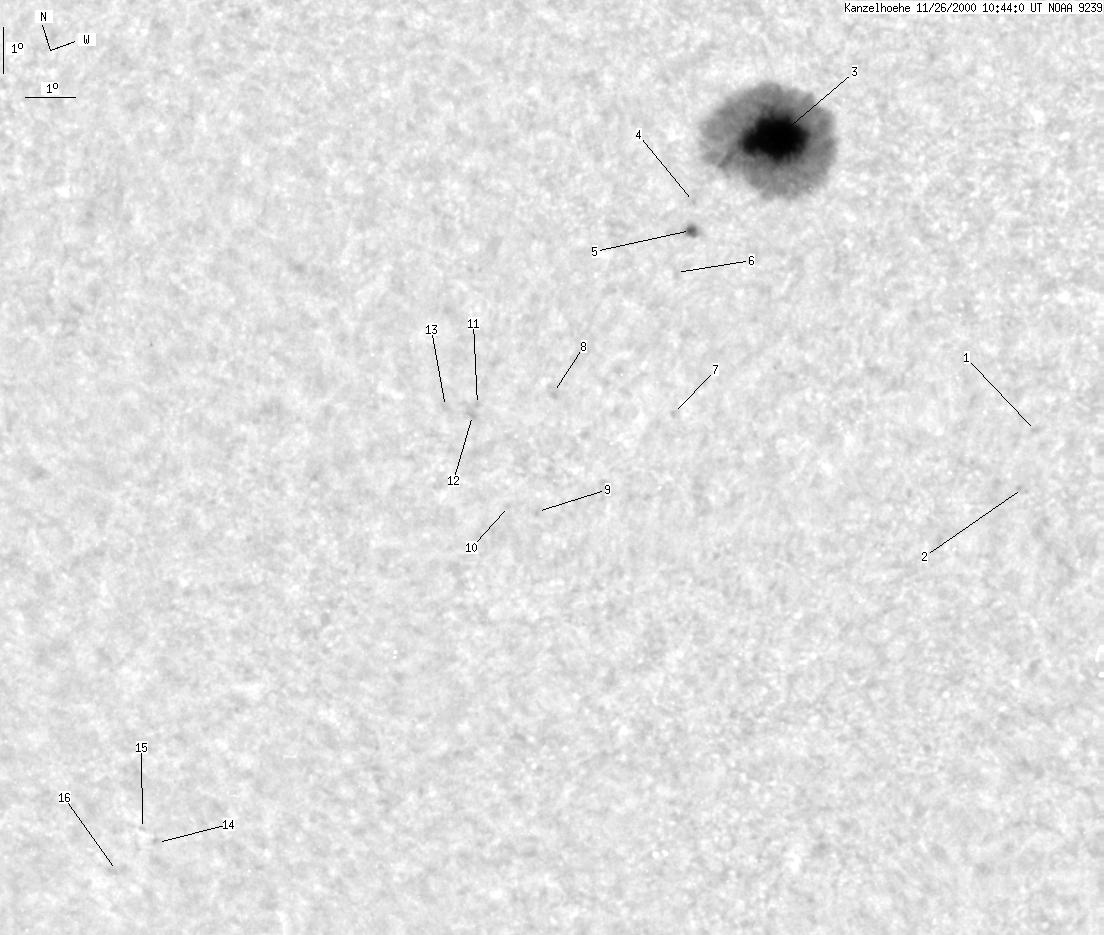

Kanzelhoehe 2000-11-26 10:43:59 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 64 | 395 | 35 | 221 | -20.31 | 306.91 | -18.80 | 140.97 | 0.4778 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-11-26 10:43:59 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 0 | -26.79 | 310.17 | -15.53 | 153.13 | 0.5310 | |
| 0 | 3 | 0 | 2 | -27.85 | 309.39 | -16.32 | 153.02 | 0.5497 | |
| 63 | 363 | 35 | 203 | -19.76 | 307.83 | -17.88 | 141.25 | 0.4636 | |
| 0 | 1 | 0 | 0 | -20.46 | 305.75 | -19.95 | 139.27 | 0.4920 | |
| 1 | 4 | 0 | 2 | -20.98 | 305.46 | -20.25 | 139.59 | 0.5006 | |
| 0 | 2 | 0 | 1 | -21.69 | 304.81 | -20.90 | 139.70 | 0.5146 | |
| 0 | 1 | 0 | 0 | -24.34 | 303.41 | -22.29 | 141.39 | 0.5561 | |
| 0 | 4 | 0 | 2 | -23.25 | 301.31 | -24.40 | 137.57 | 0.5648 | |
| 0 | 2 | 0 | 1 | -25.43 | 299.73 | -25.98 | 138.65 | 0.6009 | |
| 0 | 1 | 0 | 1 | -25.17 | 299.21 | -26.49 | 137.79 | 0.6033 | |
| 0 | 1 | 0 | 0 | -23.02 | 299.74 | -25.97 | 135.59 | 0.5782 | |
| 0 | 1 | 0 | 1 | -23.19 | 299.55 | -26.16 | 135.61 | 0.5817 | |
| 0 | 2 | 0 | 1 | -22.90 | 299.06 | -26.65 | 134.73 | 0.5839 | |
| 0 | 3 | 0 | 3 | -29.76 | 287.20 | -38.51 | 133.50 | 0.7476 | |
| 0 | 1 | 0 | 1 | -29.39 | 287.10 | -38.61 | 133.02 | 0.7460 | |
| 0 | 5 | 0 | 3 | -30.09 | 285.77 | -39.94 | 132.98 | 0.7615 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
