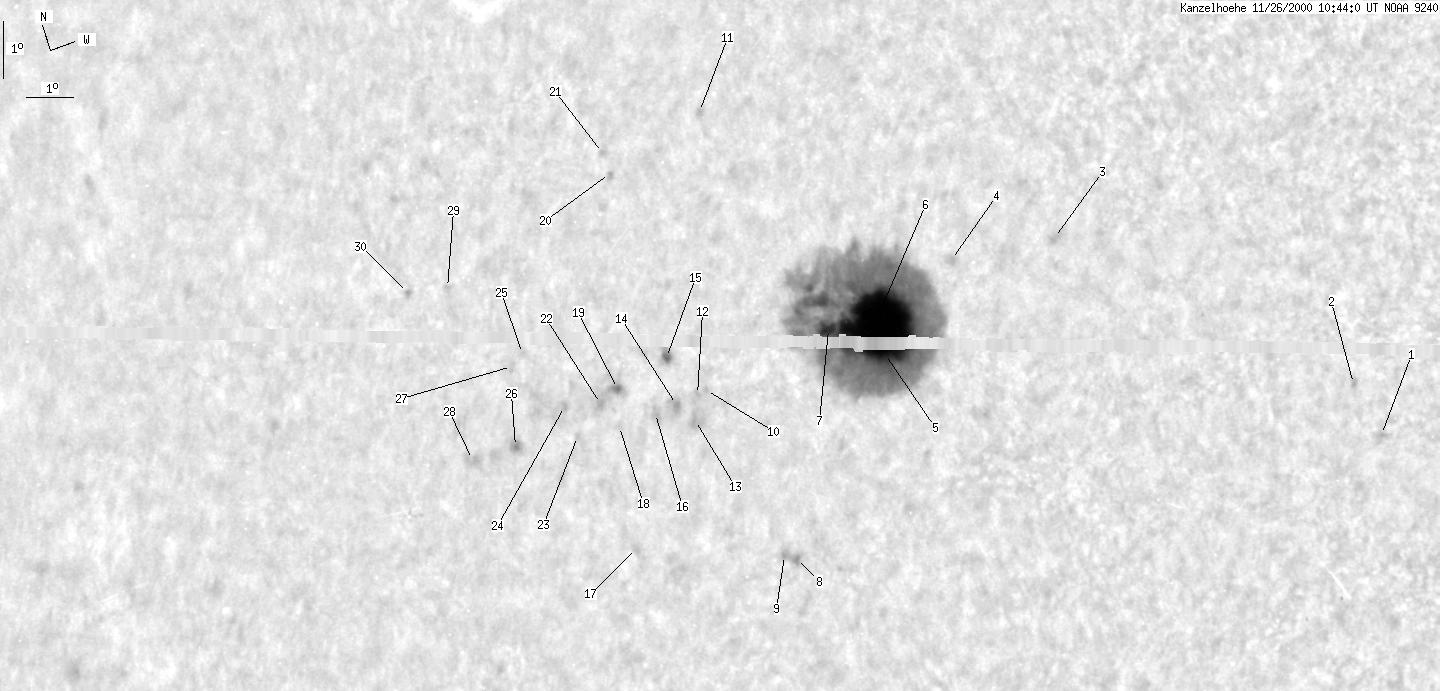

Kanzelhoehe 2000-11-26 10:43:59 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 93 | 713 | 53 | 406 | 9.83 | 297.66 | -28.05 | 72.10 | 0.4887 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-11-26 10:43:59 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 0 | 5.29 | 307.19 | -18.52 | 77.72 | 0.3252 | |
| 0 | 1 | 0 | 1 | 6.33 | 306.94 | -18.77 | 74.80 | 0.3329 | |
| 0 | 2 | 0 | 1 | 10.38 | 302.02 | -23.69 | 68.22 | 0.4274 | |
| 0 | 1 | 0 | 1 | 10.57 | 299.87 | -25.84 | 69.35 | 0.4598 | |
| 12 | 661 | 7 | 373 | 9.29 | 298.11 | -27.60 | 73.00 | 0.4801 | |
| 77 | -5 | 43 | -5 | 9.94 | 298.12 | -27.59 | 71.68 | 0.4826 | |
| 3 | -5 | 2 | -5 | 9.97 | 297.13 | -28.58 | 72.15 | 0.4971 | |
| 0 | 2 | 0 | 1 | 6.18 | 295.31 | -30.40 | 80.26 | 0.5126 | |
| 0 | 1 | 0 | 1 | 6.28 | 295.14 | -30.57 | 80.09 | 0.5152 | |
| 0 | 1 | 0 | 1 | 9.56 | 294.29 | -31.42 | 74.21 | 0.5363 | |
| 0 | 0 | 0 | 0 | 14.48 | 295.31 | -30.40 | 64.91 | 0.5432 | |
| 0 | 1 | 0 | 1 | 9.52 | 294.11 | -31.60 | 74.37 | 0.5388 | |
| 0 | 3 | 0 | 2 | 9.10 | 293.92 | -31.79 | 75.20 | 0.5401 | |
| 0 | 2 | 0 | 1 | 9.44 | 293.57 | -32.14 | 74.71 | 0.5462 | |
| 0 | 3 | 0 | 2 | 10.37 | 293.64 | -32.07 | 73.03 | 0.5482 | |
| 0 | 2 | 0 | 1 | 9.43 | 293.15 | -32.56 | 74.90 | 0.5521 | |
| 0 | 3 | 0 | 2 | 7.19 | 292.05 | -33.65 | 79.22 | 0.5619 | |
| 0 | 2 | 0 | 1 | 9.39 | 292.28 | -33.43 | 75.28 | 0.5641 | |
| 1 | 6 | 1 | 4 | 10.03 | 292.41 | -33.29 | 74.12 | 0.5642 | |
| 0 | 1 | 0 | 1 | 13.85 | 293.21 | -32.51 | 67.22 | 0.5681 | |
| 0 | 1 | 0 | 0 | 14.29 | 293.07 | -32.63 | 66.55 | 0.5718 | |
| 0 | 2 | 0 | 1 | 9.89 | 291.98 | -33.73 | 74.53 | 0.5698 | |
| 0 | 1 | 0 | 1 | 9.43 | 291.38 | -34.33 | 75.53 | 0.5768 | |
| 0 | 1 | 0 | 1 | 10.02 | 291.19 | -34.52 | 74.58 | 0.5811 | |
| 0 | 1 | 0 | 1 | 11.16 | 290.50 | -35.21 | 72.93 | 0.5940 | |
| 0 | 4 | 0 | 3 | 9.56 | 289.97 | -35.75 | 75.76 | 0.5966 | |
| 0 | 3 | 0 | 2 | 10.99 | 290.20 | -35.51 | 73.32 | 0.5975 | |
| 0 | 5 | 0 | 3 | 9.59 | 288.92 | -36.78 | 76.01 | 0.6108 | |
| 0 | 1 | 0 | 0 | 12.70 | 289.09 | -36.62 | 70.99 | 0.6178 | |
| 0 | 1 | 0 | 0 | 12.81 | 288.18 | -37.53 | 71.17 | 0.6299 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
