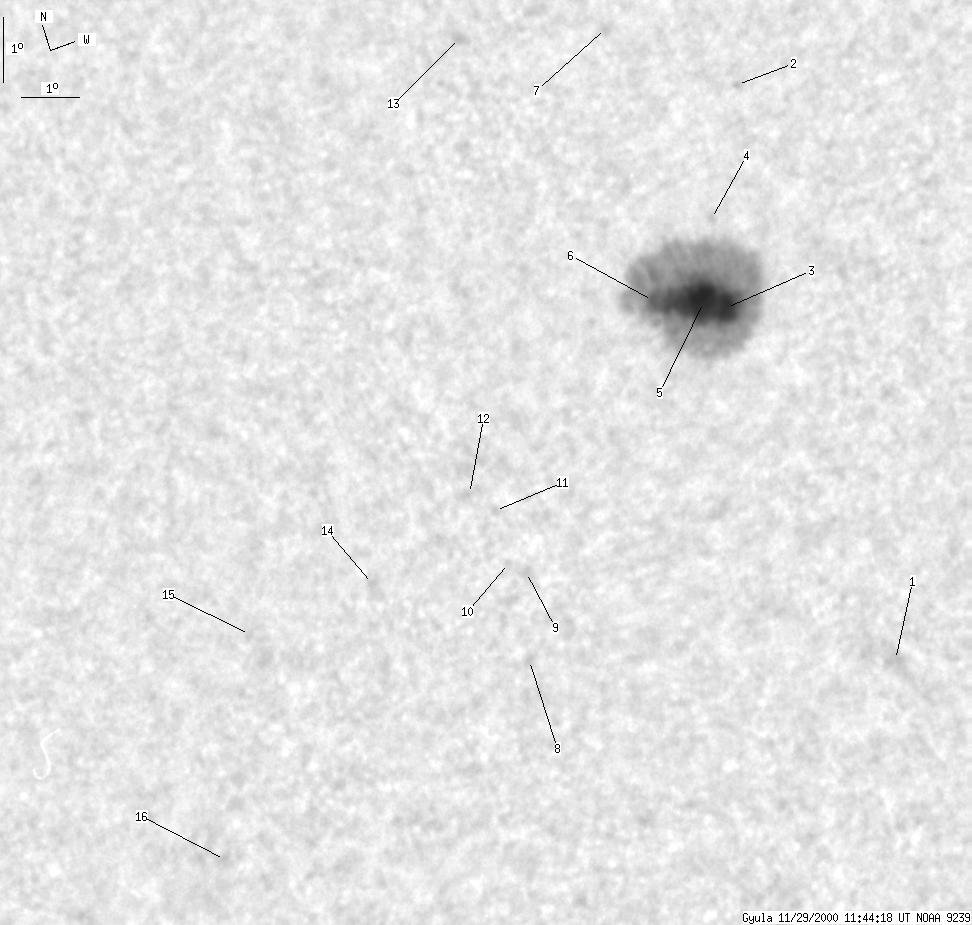

Gyula 2000-11-29 11:42:42 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 45 | 311 | 26 | 178 | -20.63 | 307.04 | 21.41 | 222.87 | 0.5050 | |
|
previous
or next day for the same group /
back to the solar disc Gyula 2000-11-29 11:42:42 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 3 | 0 | 2 | -27.10 | 309.95 | 24.33 | 217.95 | 0.5985 | |
| 0 | 2 | 0 | 1 | -17.30 | 308.44 | 22.80 | 229.76 | 0.4868 | |
| 45 | 279 | 26 | 160 | -20.63 | 307.62 | 21.98 | 223.59 | 0.5101 | |
| 0 | 2 | 0 | 1 | -19.19 | 307.59 | 21.95 | 225.71 | 0.4953 | |
| -3 | -3 | -3 | -3 | -20.44 | 307.18 | 21.55 | 223.32 | 0.5037 | |
| 0 | -3 | 0 | -3 | -20.14 | 306.34 | 20.70 | 222.66 | 0.4917 | |
| 0 | 5 | 0 | 3 | -15.86 | 306.40 | 20.78 | 229.70 | 0.4495 | |
| 0 | 1 | 0 | 1 | -25.29 | 303.30 | 17.68 | 211.81 | 0.5230 | |
| 0 | 2 | 0 | 1 | -23.87 | 303.48 | 17.86 | 213.71 | 0.5073 | |
| 0 | 1 | 0 | 0 | -23.64 | 303.19 | 17.57 | 213.58 | 0.5021 | |
| 0 | 2 | 0 | 1 | -22.74 | 303.12 | 17.50 | 214.58 | 0.4907 | |
| 0 | 4 | 0 | 2 | -22.33 | 302.64 | 17.01 | 214.37 | 0.4815 | |
| 0 | 3 | 0 | 2 | -15.34 | 303.98 | 18.37 | 227.24 | 0.4156 | |
| 0 | 1 | 0 | 1 | -23.30 | 300.82 | 15.21 | 210.35 | 0.4787 | |
| 0 | 2 | 0 | 1 | -23.51 | 298.61 | 12.99 | 206.42 | 0.4652 | |
| 0 | 4 | 0 | 2 | -27.00 | 297.46 | 11.84 | 201.28 | 0.5060 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
