Gyula 2000-11-29 11:42:42 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 21 | 202 | 18 | 170 | 15.25 | 339.15 | 53.51 | 288.10 | 0.8174 | |
|
previous
or next day for the same group /

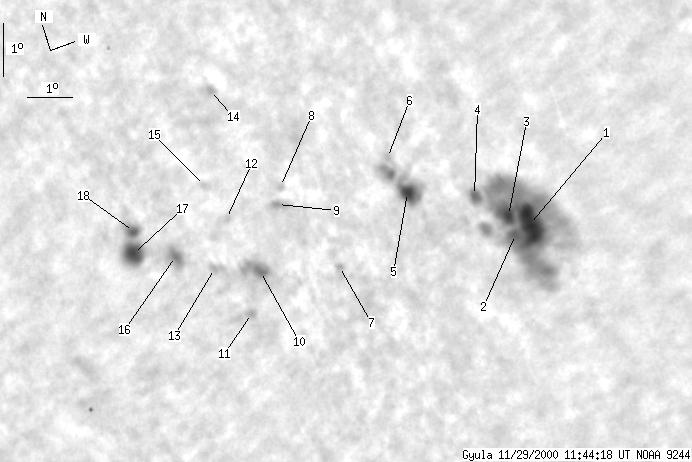

back to the solar disc Gyula 2000-11-29 11:42:42 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 11 | 147 | 10 | 130 | 14.91 | 340.63 | 54.98 | 287.35 | 0.8313 | |
| 1 | -1 | 1 | -1 | 14.84 | 340.17 | 54.55 | 287.34 | 0.8271 | |
| 2 | -1 | 1 | -1 | 15.17 | 340.27 | 54.63 | 287.73 | 0.8284 | |
| 1 | -1 | 1 | -1 | 15.60 | 339.70 | 54.06 | 288.35 | 0.8238 | |
| 2 | 19 | 2 | 16 | 15.96 | 338.20 | 52.56 | 289.11 | 0.8101 | |
| 0 | 1 | 0 | 0 | 16.59 | 338.18 | 52.56 | 289.87 | 0.8114 | |
| 0 | 1 | 0 | 0 | 15.21 | 335.78 | 50.13 | 288.73 | 0.7844 | |
| 0 | 1 | 0 | 0 | 16.67 | 335.42 | 49.80 | 290.65 | 0.7842 | |
| 0 | 1 | 0 | 1 | 16.44 | 335.14 | 49.50 | 290.44 | 0.7806 | |
| 0 | 7 | 0 | 5 | 15.54 | 334.00 | 48.36 | 289.59 | 0.7666 | |
| 0 | 2 | 0 | 1 | 14.94 | 333.34 | 47.70 | 289.00 | 0.7581 | |
| 0 | 1 | 0 | 0 | 16.45 | 333.88 | 48.26 | 290.79 | 0.7678 | |
| 0 | 2 | 0 | 1 | 15.79 | 333.07 | 47.43 | 290.18 | 0.7573 | |
| 0 | 1 | 0 | 1 | 18.49 | 335.15 | 49.50 | 293.00 | 0.7857 | |
| 0 | 1 | 0 | 1 | 17.05 | 333.81 | 48.19 | 291.57 | 0.7686 | |
| 0 | 5 | 0 | 4 | 16.15 | 332.39 | 46.75 | 290.83 | 0.7509 | |
| 4 | 13 | 3 | 10 | 16.39 | 331.58 | 45.94 | 291.40 | 0.7428 | |
| 0 | -17 | 0 | -17 | 16.71 | 331.82 | 46.18 | 291.74 | 0.7463 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
