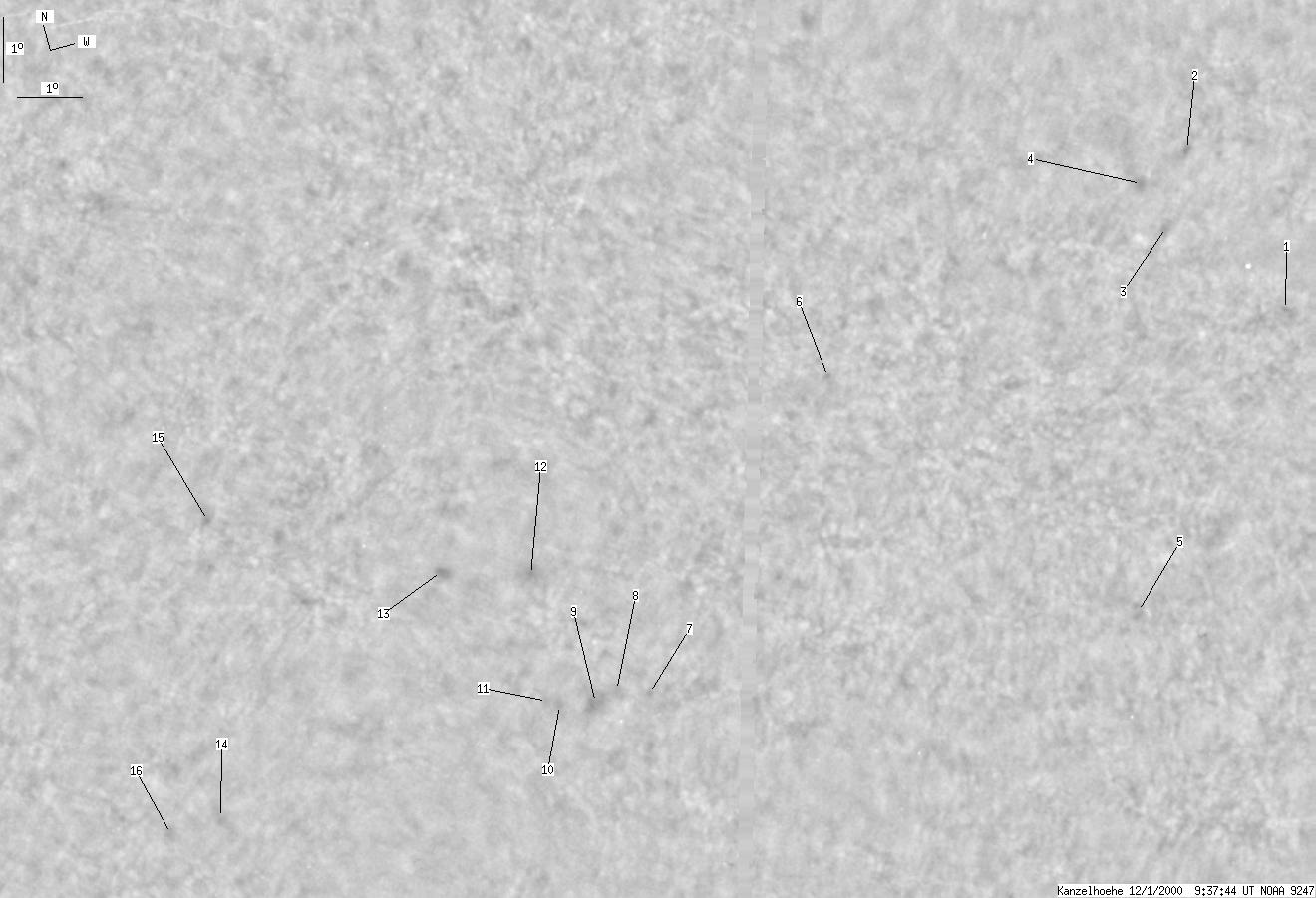

Kanzelhoehe 2000-12-01 09:39:00 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 37 | 0 | 20 | 13.09 | 262.59 | 2.17 | 350.17 | 0.2162 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-12-01 09:39:00 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 0 | 14.58 | 273.36 | 12.94 | 317.78 | 0.3239 | |
| 0 | 1 | 0 | 1 | 17.48 | 272.68 | 12.26 | 324.84 | 0.3532 | |
| 0 | 2 | 0 | 1 | 16.35 | 271.93 | 11.51 | 324.50 | 0.3313 | |
| 0 | 2 | 0 | 1 | 17.13 | 271.77 | 11.35 | 326.26 | 0.3402 | |
| 0 | 3 | 0 | 2 | 10.62 | 269.61 | 9.19 | 317.42 | 0.2332 | |
| 0 | 1 | 0 | 1 | 15.49 | 265.98 | 5.56 | 339.82 | 0.2717 | |
| 0 | 1 | 0 | 1 | 11.41 | 261.86 | 1.44 | 352.41 | 0.1868 | |
| 0 | 1 | 0 | 1 | 11.59 | 261.37 | 0.95 | 355.04 | 0.1890 | |
| 0 | 6 | 0 | 3 | 11.50 | 261.00 | 0.58 | 356.93 | 0.1869 | |
| 0 | 1 | 0 | 0 | 11.60 | 260.45 | 0.03 | 359.86 | 0.1884 | |
| 0 | 1 | 0 | 1 | 11.71 | 260.27 | -0.15 | 0.79 | 0.1904 | |
| 0 | 5 | 0 | 3 | 13.70 | 260.55 | 0.13 | 359.43 | 0.2245 | |
| 0 | 3 | 0 | 1 | 14.12 | 259.19 | -1.23 | 5.16 | 0.2326 | |
| 0 | 5 | 0 | 2 | 11.29 | 254.84 | -5.58 | 27.62 | 0.2068 | |
| 0 | 1 | 0 | 1 | 15.88 | 255.78 | -4.64 | 16.62 | 0.2729 | |
| 0 | 3 | 0 | 1 | 11.26 | 254.01 | -6.41 | 31.06 | 0.2132 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
