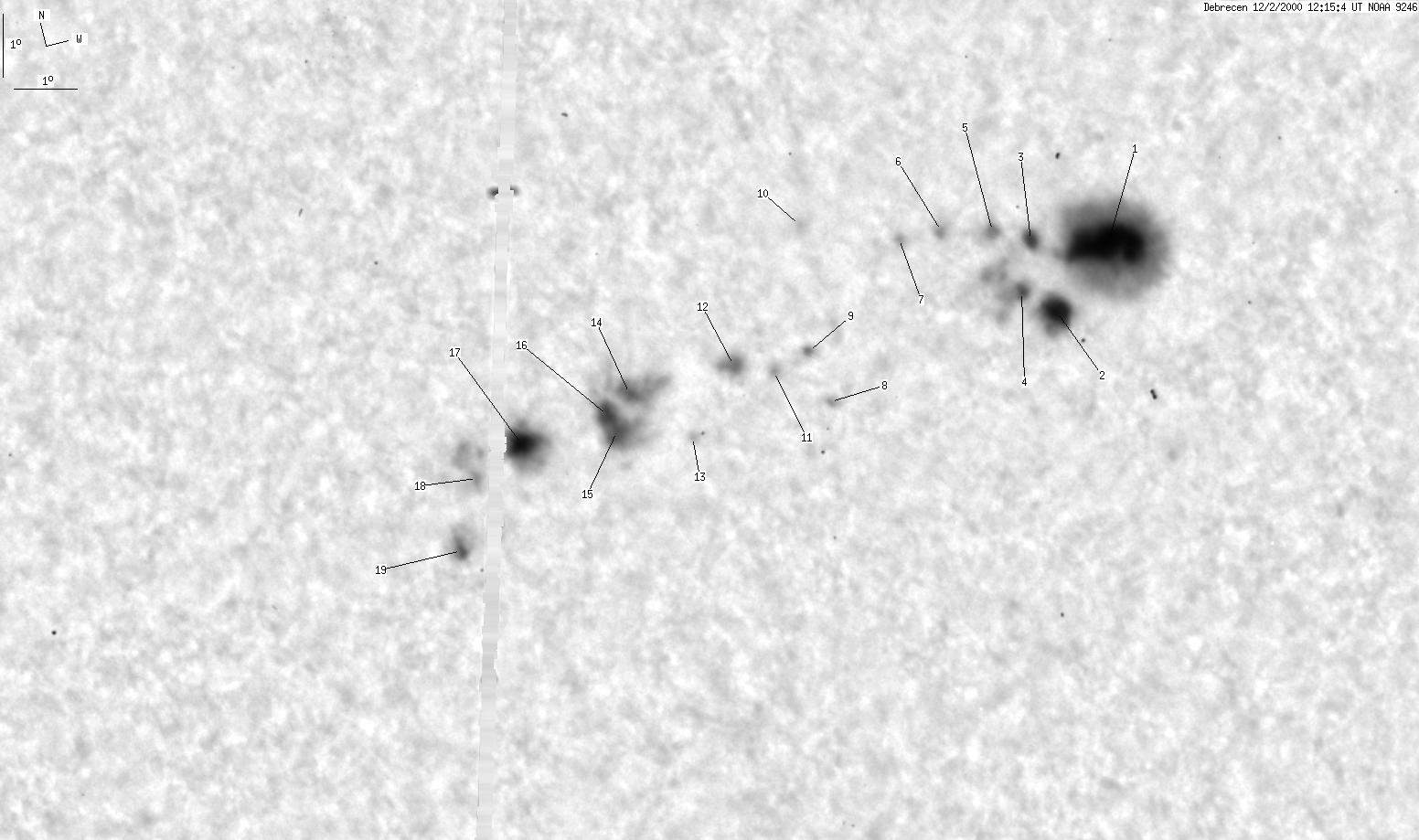

Debrecen 2000-12-02 12:17:47 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 99 | 606 | 49 | 307 | -11.67 | 249.23 | 3.45 | 195.03 | 0.2339 | |
|
previous
or next day for the same group /
back to the solar disc Debrecen 2000-12-02 12:17:47 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 53 | 380 | 27 | 194 | -11.28 | 252.56 | 6.78 | 209.28 | 0.2379 | |
| 11 | -1 | 6 | -1 | -12.11 | 251.47 | 5.69 | 203.71 | 0.2422 | |
| 4 | -1 | 2 | -1 | -10.88 | 251.27 | 5.49 | 205.20 | 0.2217 | |
| 2 | -1 | 1 | -1 | -11.64 | 251.01 | 5.23 | 202.76 | 0.2319 | |
| 2 | 10 | 1 | 5 | -10.62 | 250.76 | 4.99 | 203.62 | 0.2142 | |
| 0 | 5 | 0 | 3 | -10.40 | 249.97 | 4.19 | 200.57 | 0.2056 | |
| 0 | 2 | 0 | 1 | -10.34 | 249.33 | 3.55 | 197.73 | 0.2011 | |
| 0 | 2 | 0 | 1 | -12.74 | 247.66 | 1.88 | 187.87 | 0.2348 | |
| 0 | 5 | 0 | 2 | -11.82 | 247.47 | 1.69 | 187.63 | 0.2188 | |
| 0 | 1 | 0 | 0 | -9.77 | 247.84 | 2.04 | 190.98 | 0.1851 | |
| 0 | 3 | 0 | 1 | -12.04 | 246.86 | 1.08 | 184.81 | 0.2215 | |
| 2 | 17 | 1 | 9 | -11.76 | 246.29 | 0.51 | 182.31 | 0.2160 | |
| 0 | 1 | 0 | 0 | -12.69 | 245.37 | -0.43 | 178.17 | 0.2319 | |
| 2 | 81 | 1 | 41 | -11.76 | 244.54 | -1.24 | 174.36 | 0.2170 | |
| 3 | -14 | 1 | -14 | -12.33 | 244.18 | -1.60 | 173.07 | 0.2273 | |
| 5 | -14 | 2 | -14 | -12.02 | 244.06 | -1.72 | 172.40 | 0.2223 | |
| 12 | 50 | 6 | 25 | -12.20 | 242.63 | -3.15 | 166.43 | 0.2298 | |
| 1 | 32 | 0 | 16 | -12.53 | 241.80 | -3.98 | 163.43 | 0.2390 | |
| 2 | 17 | 1 | 9 | -13.64 | 241.23 | -4.54 | 162.67 | 0.2597 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
