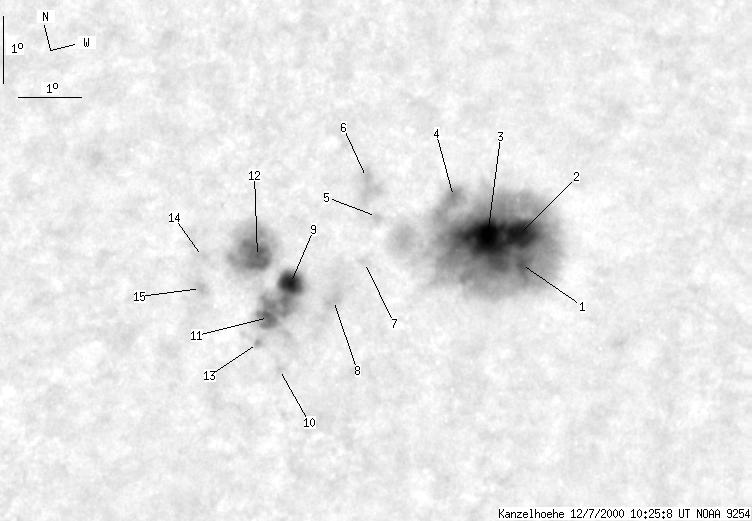

Kanzelhoehe 2000-12-07 10:22:48 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 53 | 541 | 28 | 284 | 9.82 | 165.41 | -15.52 | 56.92 | 0.3156 | |
|
previous
or next day for the same group /
back to the solar disc Kanzelhoehe 2000-12-07 10:22:48 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 358 | 1 | 186 | 9.27 | 166.92 | -14.02 | 56.08 | 0.2894 | |
| 37 | -1 | 19 | -1 | 9.71 | 166.97 | -13.97 | 54.72 | 0.2928 | |
| -2 | -1 | -2 | -1 | 9.79 | 166.46 | -14.48 | 55.44 | 0.3006 | |
| 1 | -1 | 1 | -1 | 10.50 | 166.02 | -14.90 | 54.26 | 0.3129 | |
| 0 | 1 | 0 | 1 | 10.47 | 164.73 | -16.19 | 56.51 | 0.3302 | |
| 0 | 8 | 0 | 4 | 11.17 | 164.68 | -16.26 | 54.86 | 0.3375 | |
| 0 | 2 | 0 | 1 | 9.81 | 164.41 | -16.51 | 58.73 | 0.3291 | |
| 0 | 5 | 0 | 3 | 9.34 | 163.76 | -17.18 | 60.93 | 0.3350 | |
| 6 | 162 | 3 | 86 | 9.80 | 163.14 | -17.80 | 60.59 | 0.3474 | |
| 0 | 1 | 0 | 1 | 8.49 | 162.73 | -18.19 | 64.48 | 0.3436 | |
| 2 | -9 | 1 | -9 | 9.31 | 162.71 | -18.21 | 62.35 | 0.3497 | |
| 6 | -9 | 3 | -9 | 10.28 | 162.70 | -18.22 | 59.93 | 0.3570 | |
| 0 | -9 | 0 | -9 | 8.96 | 162.45 | -18.46 | 63.58 | 0.3509 | |
| 0 | 2 | 0 | 1 | 10.47 | 161.81 | -19.11 | 60.60 | 0.3712 | |
| 0 | 2 | 0 | 1 | 10.05 | 161.69 | -19.25 | 61.76 | 0.3700 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
