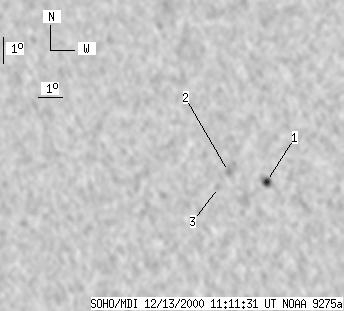

SOHO MDI 2000-12-13 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 3 | 27 | 2 | 15 | -9.85 | 84.96 | -16.71 | 119.18 | 0.3258 | |
|
previous
or next day for the same group /
back to the solar disc SOHO MDI 2000-12-13 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 3 | 11 | 2 | 6 | -9.92 | 85.99 | -15.68 | 120.85 | 0.3115 | |
| 0 | 9 | 0 | 5 | -9.53 | 84.48 | -17.20 | 117.59 | 0.3305 | |
| 0 | 7 | 0 | 4 | -10.15 | 84.03 | -17.64 | 118.66 | 0.3415 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
