| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 8 | 79 | 4 | 43 | 14.62 | 33.70 | 9.29 | 330.99 | 0.3207 | |
|
previous
or next day for the same group /

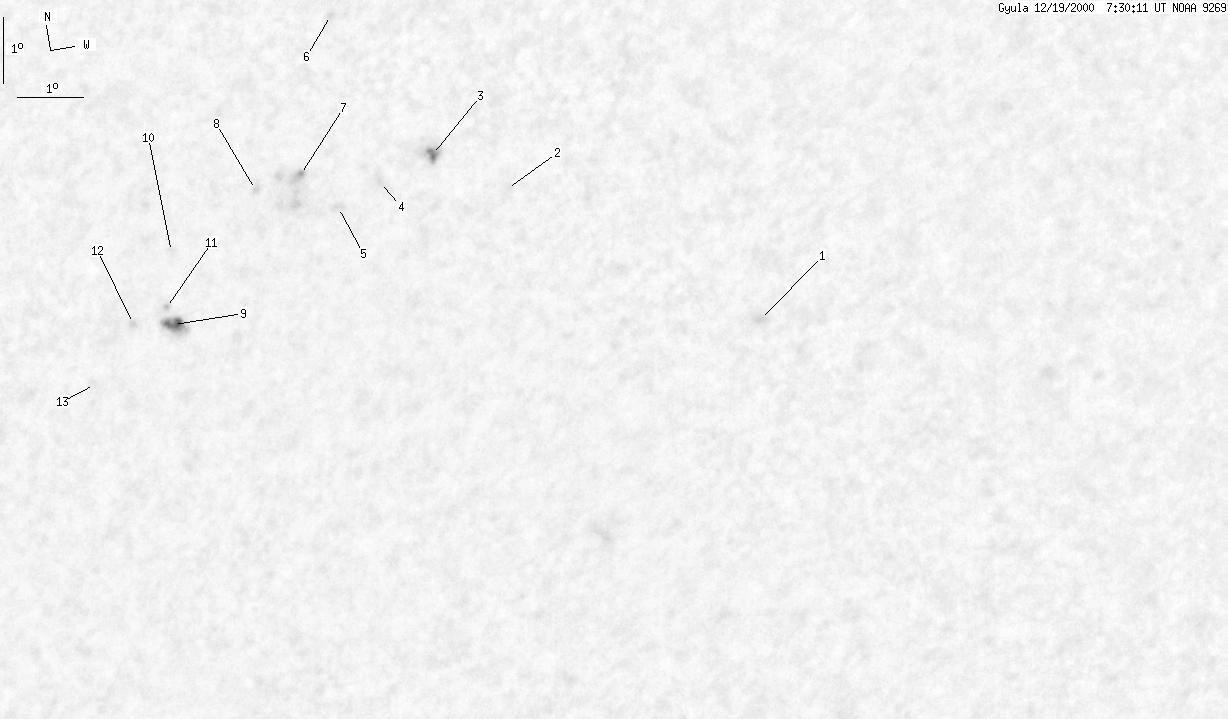

back to the solar disc Gyula 2000-12-19 07:27:54 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 1 | 12.08 | 40.21 | 15.80 | 311.28 | 0.3559 | |
| 0 | 2 | 0 | 1 | 14.63 | 36.68 | 12.27 | 323.42 | 0.3466 | |
| 2 | 23 | 1 | 12 | 15.32 | 35.62 | 11.21 | 327.00 | 0.3458 | |
| 0 | 7 | 0 | 4 | 14.99 | 34.73 | 10.32 | 328.60 | 0.3335 | |
| 0 | 2 | 0 | 1 | 14.70 | 34.00 | 9.59 | 329.95 | 0.3232 | |
| 0 | 1 | 0 | 1 | 17.71 | 34.47 | 10.05 | 333.15 | 0.3699 | |
| 1 | 18 | 0 | 9 | 15.29 | 33.51 | 9.10 | 332.13 | 0.3278 | |
| 0 | 1 | 0 | 1 | 15.16 | 32.77 | 8.36 | 333.89 | 0.3203 | |
| 5 | 20 | 3 | 10 | 13.25 | 31.14 | 6.73 | 335.85 | 0.2801 | |
| 0 | 1 | 0 | 1 | 14.38 | 31.31 | 6.89 | 336.96 | 0.2984 | |
| 0 | -9 | 0 | -9 | 13.53 | 31.08 | 6.67 | 336.46 | 0.2839 | |
| 0 | 1 | 0 | 1 | 13.36 | 30.53 | 6.12 | 337.95 | 0.2776 | |
| 0 | 2 | 0 | 1 | 12.51 | 29.78 | 5.37 | 339.31 | 0.2597 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
