| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 56 | 1 | 35 | 14.72 | 32.34 | 35.13 | 296.57 | 0.6245 | |
|
previous
or next day for the same group /

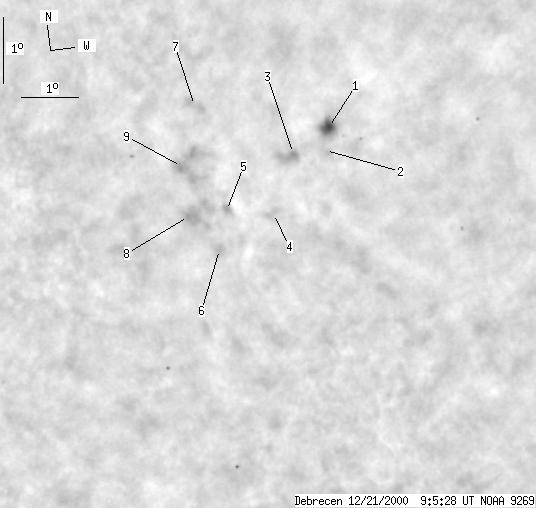

back to the solar disc Debrecen 2000-12-21 09:01:57 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 10 | 1 | 7 | 15.28 | 34.11 | 36.88 | 296.37 | 0.6485 | |
| 0 | 3 | 0 | 2 | 14.91 | 34.04 | 36.85 | 295.86 | 0.6463 | |
| 0 | 4 | 0 | 2 | 14.90 | 33.44 | 36.25 | 296.18 | 0.6391 | |
| 0 | 4 | 0 | 2 | 14.03 | 32.80 | 35.61 | 295.25 | 0.6269 | |
| 0 | 3 | 0 | 2 | 14.12 | 31.98 | 34.78 | 295.87 | 0.6172 | |
| 0 | 2 | 0 | 1 | 13.55 | 31.68 | 34.49 | 295.17 | 0.6106 | |
| 0 | 5 | 0 | 3 | 15.71 | 31.88 | 34.67 | 298.31 | 0.6242 | |
| 0 | 13 | 0 | 8 | 14.12 | 31.28 | 34.07 | 296.30 | 0.6083 | |
| 0 | 12 | 0 | 8 | 14.83 | 31.37 | 34.18 | 297.31 | 0.6135 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
