| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 4 | 78 | 3 | 41 | 20.56 | 355.92 | -1.29 | 3.19 | 0.3802 | |
|
previous
or next day for the same group /

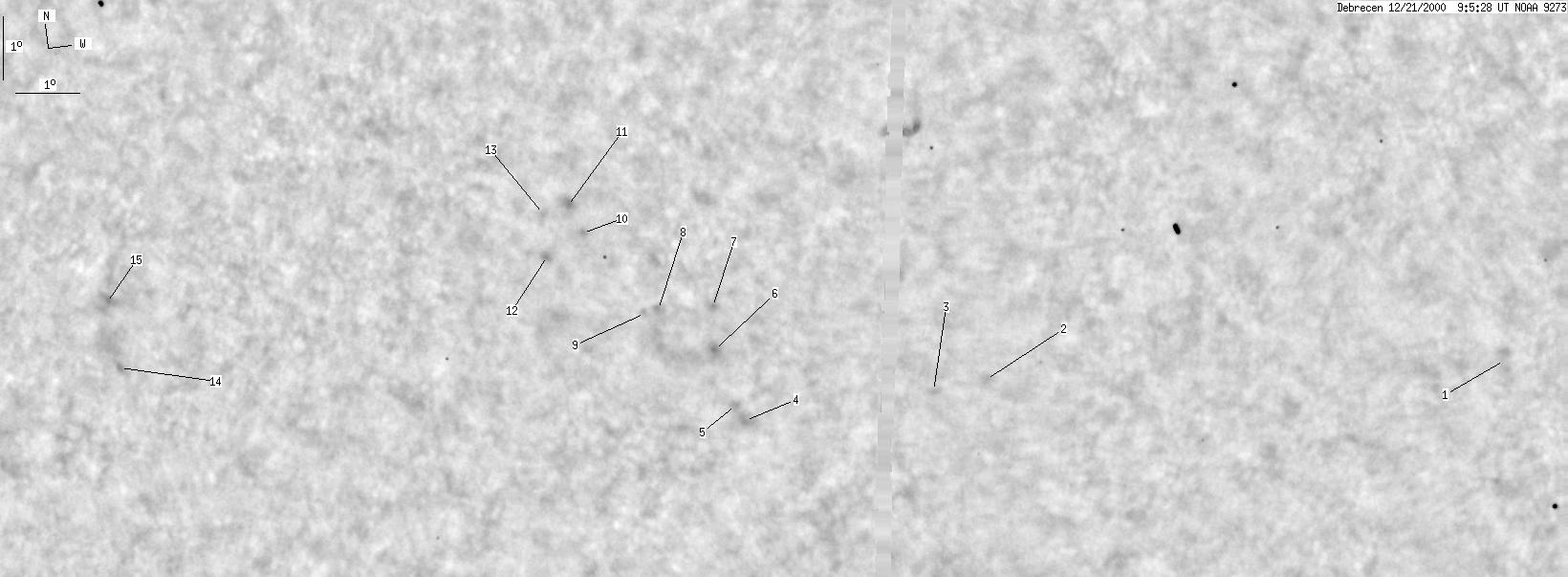

back to the solar disc Debrecen 2000-12-21 09:01:57 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 5 | 0 | 3 | 18.85 | 8.72 | 11.50 | 331.75 | 0.4005 | |
| 0 | 3 | 0 | 2 | 19.31 | 0.35 | 3.14 | 351.82 | 0.3647 | |
| 0 | 4 | 0 | 2 | 19.17 | 359.55 | 2.34 | 353.83 | 0.3607 | |
| 1 | 10 | 1 | 5 | 19.02 | 356.52 | -0.68 | 1.81 | 0.3565 | |
| 1 | -4 | 0 | -4 | 19.29 | 356.39 | -0.81 | 2.12 | 0.3609 | |
| 1 | 34 | 1 | 18 | 20.12 | 356.17 | -1.06 | 2.67 | 0.3746 | |
| 0 | 1 | 0 | 0 | 20.88 | 356.16 | -1.05 | 2.55 | 0.3870 | |
| 1 | -6 | 1 | -6 | 20.90 | 355.29 | -1.93 | 4.67 | 0.3882 | |
| 0 | 1 | 0 | 0 | 20.91 | 355.07 | -2.13 | 5.14 | 0.3886 | |
| 0 | 2 | 0 | 1 | 22.27 | 354.17 | -3.05 | 6.89 | 0.4118 | |
| 0 | 7 | 0 | 4 | 22.76 | 353.95 | -3.27 | 7.21 | 0.4200 | |
| 0 | 3 | 0 | 2 | 21.91 | 353.55 | -3.66 | 8.40 | 0.4074 | |
| 0 | 1 | 0 | 0 | 22.70 | 353.55 | -3.64 | 8.06 | 0.4199 | |
| 0 | 1 | 0 | 1 | 20.86 | 346.48 | -10.73 | 24.37 | 0.4235 | |
| 0 | 6 | 0 | 3 | 21.92 | 346.32 | -10.89 | 23.62 | 0.4396 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
