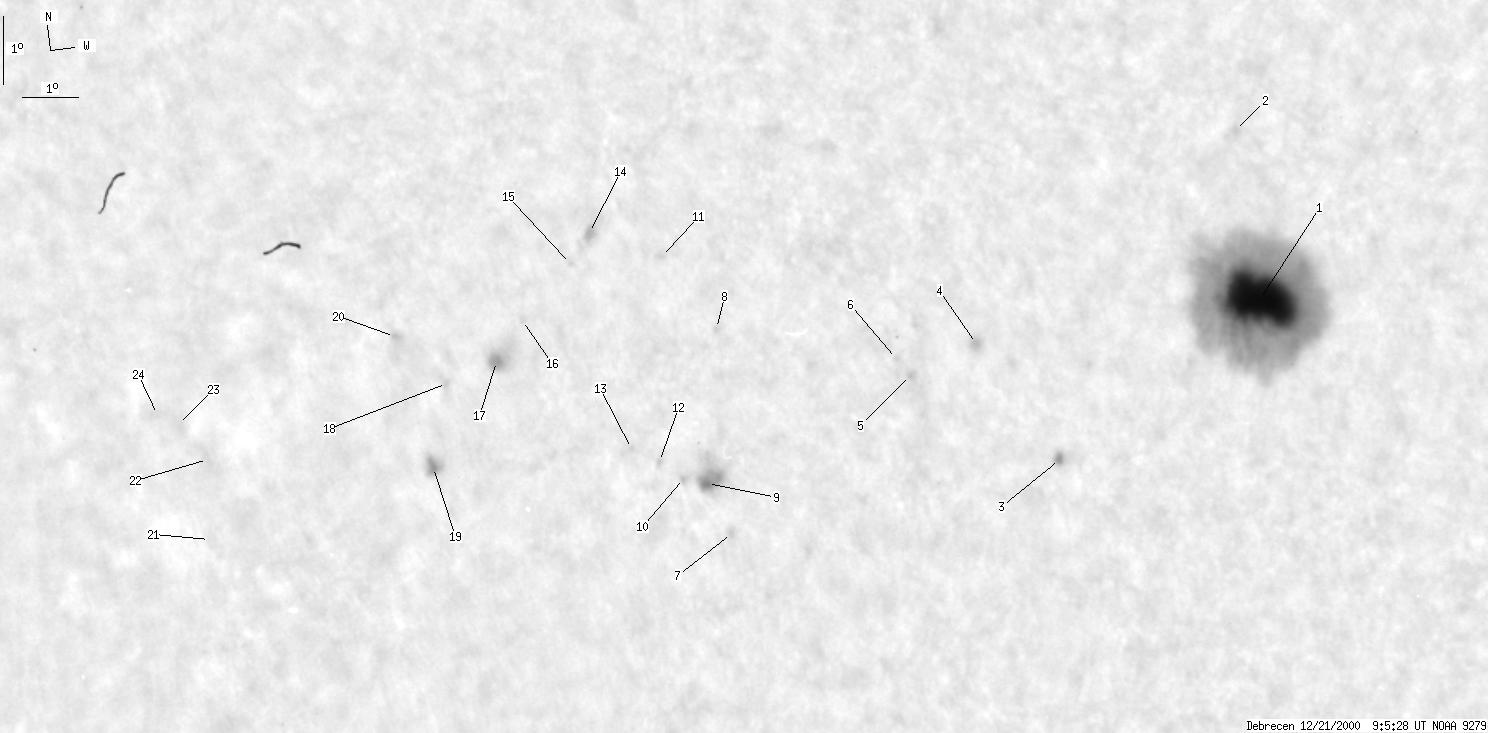

Debrecen 2000-12-21 09:01:57 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 54 | 395 | 31 | 229 | -11.38 | 326.54 | -30.68 | 109.28 | 0.5289 | |
|
previous
or next day for the same group /
back to the solar disc Debrecen 2000-12-21 09:01:57 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 49 | 329 | 28 | 187 | -11.32 | 329.04 | -28.18 | 110.13 | 0.4953 | |
| 0 | 1 | 0 | 1 | -8.76 | 329.18 | -28.04 | 105.13 | 0.4832 | |
| 0 | 2 | 0 | 1 | -13.26 | 325.15 | -32.08 | 111.54 | 0.5580 | |
| 0 | 2 | 0 | 1 | -11.40 | 324.17 | -33.05 | 107.87 | 0.5639 | |
| 0 | 2 | 0 | 1 | -11.80 | 322.89 | -34.34 | 108.02 | 0.5829 | |
| 0 | 1 | 0 | 0 | -11.44 | 322.72 | -34.47 | 107.38 | 0.5835 | |
| 0 | 1 | 0 | 1 | -13.71 | 319.01 | -38.21 | 109.56 | 0.6400 | |
| 0 | 1 | 0 | 0 | -10.70 | 319.63 | -37.56 | 105.11 | 0.6228 | |
| 2 | 17 | 1 | 11 | -13.00 | 318.77 | -38.46 | 108.39 | 0.6409 | |
| 0 | 1 | 0 | 0 | -12.81 | 318.39 | -38.80 | 107.99 | 0.6448 | |
| 0 | 0 | 0 | 0 | -9.56 | 318.90 | -38.29 | 103.11 | 0.6297 | |
| 0 | 1 | 0 | 1 | -12.52 | 318.02 | -39.17 | 107.43 | 0.6486 | |
| 0 | 1 | 0 | 0 | -12.28 | 317.56 | -39.64 | 106.92 | 0.6539 | |
| 0 | 3 | 0 | 2 | -9.23 | 317.59 | -39.63 | 102.28 | 0.6467 | |
| 0 | 0 | 0 | 0 | -9.55 | 317.18 | -40.04 | 102.68 | 0.6526 | |
| 0 | 1 | 0 | 0 | -10.24 | 316.05 | -41.14 | 103.46 | 0.6681 | |
| 3 | 14 | 2 | 9 | -10.86 | 315.36 | -41.87 | 104.20 | 0.6785 | |
| 0 | 1 | 0 | 1 | -11.01 | 314.30 | -42.89 | 104.19 | 0.6914 | |
| 0 | 5 | 0 | 4 | -12.25 | 313.57 | -43.66 | 105.76 | 0.7034 | |
| 0 | 1 | 0 | 1 | -10.31 | 313.46 | -43.75 | 103.00 | 0.7006 | |
| 0 | 0 | 0 | 0 | -12.82 | 308.60 | -48.60 | 105.45 | 0.7611 | |
| 0 | 3 | 0 | 2 | -11.66 | 309.01 | -48.18 | 104.01 | 0.7546 | |
| 0 | 5 | 0 | 4 | -11.10 | 308.57 | -48.62 | 103.19 | 0.7586 | |
| 0 | 3 | 0 | 2 | -10.92 | 308.17 | -49.02 | 102.89 | 0.7628 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
