| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 26 | 128 | 18 | 84 | -27.37 | 56.27 | -35.85 | 129.54 | 0.6757 | |
|
previous
or next day for the same group /

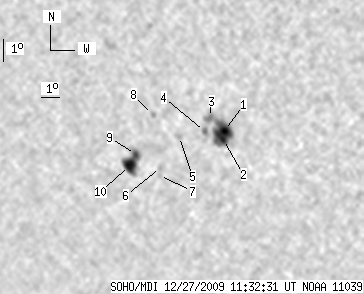

back to the solar disc SOHO/MDI 2009-12-27 11:32:31 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 5 | 56 | 3 | 36 | -26.82 | 58.71 | -33.42 | 130.43 | 0.6480 | |
| 4 | -1 | 3 | -1 | -27.20 | 58.53 | -33.60 | 130.80 | 0.6525 | |
| 0 | 10 | 0 | 6 | -26.26 | 58.12 | -34.00 | 129.27 | 0.6502 | |
| 0 | 5 | 0 | 3 | -26.84 | 57.66 | -34.46 | 129.72 | 0.6588 | |
| 0 | 6 | 0 | 4 | -27.02 | 56.28 | -35.84 | 129.03 | 0.6739 | |
| 0 | 3 | 0 | 2 | -28.30 | 54.76 | -37.37 | 129.70 | 0.6969 | |
| 0 | 2 | 0 | 1 | -28.64 | 54.56 | -37.57 | 130.00 | 0.7009 | |
| 0 | 3 | 0 | 2 | -26.07 | 55.20 | -36.93 | 127.10 | 0.6790 | |
| 3 | 43 | 2 | 30 | -27.72 | 53.62 | -38.50 | 128.28 | 0.7045 | |
| 14 | -9 | 10 | -9 | -28.18 | 53.09 | -39.03 | 128.54 | 0.7122 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
