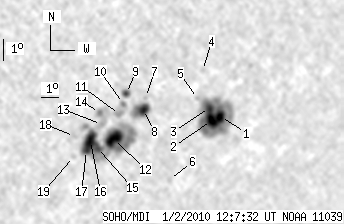

SOHO/MDI 2010-01-02 12:07:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 86 | 463 | 63 | 333 | -28.19 | 53.91 | 41.10 | 233.02 | 0.7269 | |
|
previous
or next day for the same group /
back to the solar disc SOHO/MDI 2010-01-02 12:07:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 9 | 161 | 7 | 122 | -27.62 | 57.89 | 45.08 | 235.69 | 0.7619 | |
| 10 | -1 | 8 | -1 | -27.81 | 57.43 | 44.63 | 235.27 | 0.7585 | |
| 6 | -1 | 5 | -1 | -27.27 | 57.04 | 44.23 | 235.76 | 0.7524 | |
| 0 | 3 | 0 | 2 | -25.76 | 55.90 | 43.09 | 237.15 | 0.7348 | |
| 0 | 2 | 0 | 2 | -26.92 | 56.15 | 43.34 | 235.79 | 0.7424 | |
| 0 | 4 | 0 | 3 | -30.39 | 56.26 | 43.46 | 231.60 | 0.7594 | |
| 0 | 2 | 0 | 1 | -26.99 | 53.17 | 40.36 | 234.26 | 0.7134 | |
| 10 | 31 | 7 | 22 | -27.49 | 53.27 | 40.47 | 233.68 | 0.7171 | |
| 3 | 10 | 2 | 7 | -26.86 | 52.05 | 39.24 | 233.83 | 0.7015 | |
| 0 | 6 | 0 | 4 | -27.28 | 52.06 | 39.25 | 233.29 | 0.7039 | |
| 0 | 8 | 0 | 6 | -27.74 | 52.03 | 39.23 | 232.68 | 0.7062 | |
| 21 | 205 | 15 | 143 | -28.80 | 52.16 | 39.36 | 231.42 | 0.7133 | |
| 0 | 12 | 0 | 8 | -28.20 | 51.22 | 38.42 | 231.65 | 0.7008 | |
| 0 | 11 | 0 | 8 | -27.70 | 50.90 | 38.10 | 232.10 | 0.6947 | |
| 5 | -12 | 4 | -12 | -29.17 | 51.42 | 38.62 | 230.53 | 0.7084 | |
| 17 | -12 | 12 | -12 | -28.89 | 50.91 | 38.10 | 230.59 | 0.7018 | |
| 5 | -12 | 3 | -12 | -29.32 | 50.87 | 38.07 | 230.03 | 0.7040 | |
| 0 | 5 | 0 | 3 | -28.75 | 49.96 | 37.16 | 230.19 | 0.6918 | |
| 0 | 3 | 0 | 2 | -29.60 | 50.27 | 37.47 | 229.31 | 0.6999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
