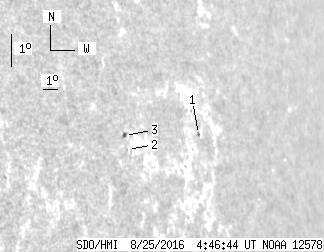

SDO HMI 2016-08-25 04:46:45 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 1 | 3 | 1 | 4 | 9.58 | 86.70 | 64.38 | 277.25 | 0.8972 | |
|
previous
day for the same group /
back to the solar disc SDO HMI 2016-08-25 04:46:45 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 0 | 1 | 0 | 2 | 9.32 | 89.39 | 67.07 | 277.12 | 0.9176 | |
| 0 | 0 | 0 | 0 | 9.42 | 84.30 | 61.98 | 276.91 | 0.8792 | |
| 1 | 2 | 1 | 2 | 9.86 | 84.24 | 61.92 | 277.41 | 0.8785 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
