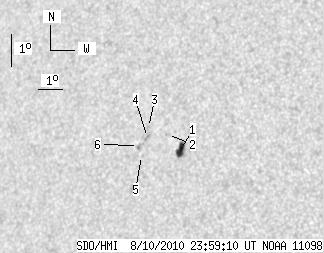

SDO HMI 2010-08-10 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.30 | 17.14 | 5.36 | 11.15 | 13.75 | 301.35 | -40.40 | 76.30 | 0.6503 | -173.7 | 178.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-08-10 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.30 | 10.38 | 5.36 | 6.69 | 13.66 | 301.92 | -39.83 | 76.35 | 0.6428 | -688.9 | -383.6 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 14.08 | 301.30 | -40.45 | 75.81 | 0.6514 | 290.0 | 307.1 | |
| 0.00 | 1.44 | 0.00 | 0.95 | 14.24 | 300.47 | -41.28 | 75.71 | 0.6622 | -156.0 | -212.6 | |
| 0.00 | 2.62 | 0.00 | 1.72 | 13.93 | 300.50 | -41.25 | 76.17 | 0.6614 | 564.0 | 504.7 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 13.36 | 300.37 | -41.38 | 77.04 | 0.6623 | 575.0 | 499.4 | |
| 0.00 | 1.35 | 0.00 | 0.90 | 13.66 | 300.18 | -41.57 | 76.62 | 0.6650 | 620.0 | 577.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
