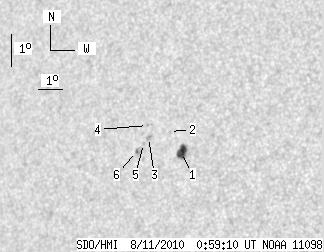

SDO HMI 2010-08-11 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.01 | 20.12 | 7.07 | 13.01 | 13.76 | 301.21 | -39.99 | 76.23 | 0.6450 | -351.1 | 282.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-08-11 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.75 | 10.65 | 6.24 | 6.81 | 13.67 | 301.97 | -39.23 | 76.23 | 0.6350 | -756.1 | -387.2 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 14.28 | 301.35 | -39.85 | 75.40 | 0.6439 | -573.0 | -415.0 | |
| 0.00 | 2.44 | 0.00 | 1.59 | 14.04 | 300.54 | -40.66 | 75.92 | 0.6540 | 655.0 | 520.8 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 14.40 | 300.42 | -40.78 | 75.39 | 0.6561 | -340.0 | -232.0 | |
| 0.00 | 1.26 | 0.00 | 0.83 | 13.84 | 300.38 | -40.83 | 76.24 | 0.6558 | 586.0 | 389.9 | |
| 1.26 | 4.33 | 0.83 | 2.84 | 13.58 | 300.14 | -41.06 | 76.68 | 0.6584 | 606.6 | 514.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
