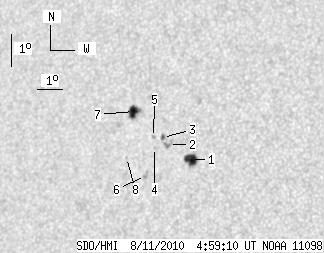

SDO HMI 2010-08-11 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.40 | 37.02 | 14.11 | 23.35 | 14.41 | 300.98 | -38.03 | 74.84 | 0.6203 | -103.6 | -59.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-08-11 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.93 | 12.82 | 6.77 | 7.94 | 13.91 | 302.27 | -36.74 | 75.36 | 0.6024 | -819.7 | -464.0 | |
| 0.00 | 4.70 | 0.00 | 2.95 | 14.31 | 301.32 | -37.69 | 74.92 | 0.6157 | -832.0 | -525.9 | |
| 1.90 | 2.35 | 1.19 | 1.48 | 14.51 | 301.04 | -37.96 | 74.66 | 0.6198 | -583.9 | -413.0 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 14.19 | 300.79 | -38.22 | 75.24 | 0.6225 | 697.0 | 628.9 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 14.49 | 300.69 | -38.32 | 74.78 | 0.6244 | -599.0 | -459.1 | |
| 0.00 | 2.53 | 0.00 | 1.60 | 13.31 | 300.60 | -38.41 | 76.67 | 0.6236 | 762.0 | 681.3 | |
| 9.57 | 12.01 | 6.15 | 7.71 | 15.23 | 299.72 | -39.29 | 73.83 | 0.6384 | 784.9 | 550.7 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 13.81 | 299.74 | -39.27 | 76.04 | 0.6356 | -592.0 | -494.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
