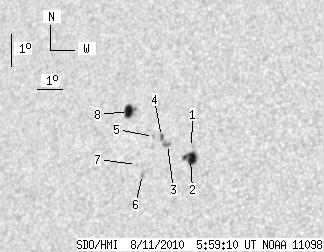

SDO HMI 2010-08-11 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.67 | 37.47 | 14.16 | 23.42 | 14.40 | 301.11 | -37.35 | 74.72 | 0.6114 | -30.7 | 50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-08-11 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.39 | 14.27 | 302.35 | -36.11 | 74.63 | 0.5945 | 535.0 | 531.9 | |
| 11.02 | 14.36 | 6.77 | 8.82 | 13.93 | 302.38 | -36.08 | 75.19 | 0.5935 | -844.0 | -344.9 | |
| 1.17 | 3.61 | 0.73 | 2.25 | 14.30 | 301.41 | -37.05 | 74.80 | 0.6073 | -737.0 | -610.8 | |
| 1.54 | 2.44 | 0.96 | 1.52 | 14.52 | 301.13 | -37.33 | 74.50 | 0.6115 | -569.1 | -622.9 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 14.50 | 300.81 | -37.65 | 74.60 | 0.6156 | -233.0 | -292.1 | |
| 0.00 | 2.44 | 0.00 | 1.53 | 13.32 | 300.60 | -37.86 | 76.56 | 0.6162 | 806.0 | 677.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 13.61 | 300.31 | -38.15 | 76.15 | 0.6206 | 481.0 | 365.4 | |
| 8.94 | 12.01 | 5.70 | 7.66 | 15.20 | 299.66 | -38.80 | 73.76 | 0.6320 | 816.2 | 653.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
