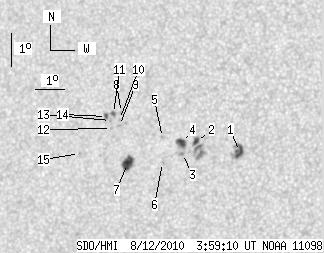

SDO HMI 2010-08-12 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.15 | 69.57 | 15.98 | 38.07 | 14.25 | 302.01 | -24.32 | 70.02 | 0.4263 | 94.2 | -341.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-08-12 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.04 | 13.54 | 3.79 | 7.29 | 14.14 | 304.36 | -21.97 | 68.77 | 0.3909 | -1068.1 | -700.2 | |
| 2.80 | 17.33 | 1.52 | 9.41 | 14.38 | 302.87 | -23.46 | 69.23 | 0.4142 | -769.3 | -855.9 | |
| 0.00 | 2.53 | 0.00 | 1.38 | 13.99 | 302.44 | -23.90 | 70.41 | 0.4190 | -941.0 | -693.4 | |
| 5.33 | 7.04 | 2.91 | 3.84 | 14.33 | 302.37 | -23.97 | 69.69 | 0.4215 | -830.1 | -792.4 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 14.45 | 301.70 | -24.64 | 69.82 | 0.4319 | -656.0 | -539.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 13.69 | 301.78 | -24.55 | 71.50 | 0.4275 | -573.0 | -432.2 | |
| 10.65 | 13.00 | 5.89 | 7.18 | 13.60 | 300.58 | -25.75 | 72.32 | 0.4450 | 998.9 | 625.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 15.15 | 300.18 | -26.15 | 69.20 | 0.4570 | 707.0 | 598.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 14.75 | 300.16 | -26.17 | 70.06 | 0.4556 | 914.0 | 699.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 14.93 | 300.14 | -26.20 | 69.68 | 0.4567 | 794.0 | 573.2 | |
| 1.62 | 7.13 | 0.91 | 3.98 | 15.10 | 299.91 | -26.43 | 69.45 | 0.4608 | 795.5 | 509.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 14.64 | 299.90 | -26.44 | 70.43 | 0.4591 | 776.0 | 630.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 14.88 | 299.83 | -26.51 | 69.95 | 0.4610 | 936.0 | 777.4 | |
| 1.71 | -11.00 | 0.96 | -11.00 | 15.00 | 299.67 | -26.66 | 69.80 | 0.4637 | 684.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 13.82 | 298.88 | -27.46 | 72.65 | 0.4710 | 764.0 | 548.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
