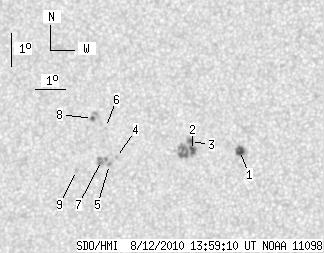

SDO HMI 2010-08-12 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.80 | 47.18 | 6.70 | 24.80 | 14.14 | 302.63 | -18.22 | 65.27 | 0.3349 | -78.1 | -152.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-08-12 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.95 | 8.39 | 3.09 | 4.36 | 14.16 | 304.94 | -15.90 | 62.62 | 0.3005 | -1017.6 | -574.8 | |
| 3.97 | 23.19 | 2.08 | 12.14 | 14.11 | 303.41 | -17.44 | 64.66 | 0.3229 | -1057.9 | -807.1 | |
| 1.35 | -2.00 | 0.71 | -2.00 | 14.39 | 303.32 | -17.52 | 63.98 | 0.3260 | -892.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.81 | 300.92 | -19.92 | 67.97 | 0.3585 | 910.0 | 725.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 13.59 | 300.71 | -20.14 | 68.74 | 0.3606 | 944.0 | 846.3 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 14.72 | 300.47 | -20.38 | 66.02 | 0.3702 | 780.0 | 583.5 | |
| 0.00 | 6.50 | 0.00 | 3.45 | 13.70 | 300.43 | -20.41 | 68.67 | 0.3654 | 988.0 | 825.0 | |
| 1.53 | 4.51 | 0.82 | 2.41 | 14.97 | 300.01 | -20.84 | 65.78 | 0.3784 | 827.7 | 632.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 13.36 | 299.63 | -21.22 | 70.16 | 0.3759 | 764.0 | 534.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
