SDO HMI 2010-08-12 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.67 | 40.20 | 8.60 | 20.85 | 14.17 | 302.53 | -15.55 | 61.92 | 0.2954 | -335.9 | 95.8 | |
|
previous
or next observation for the same group /

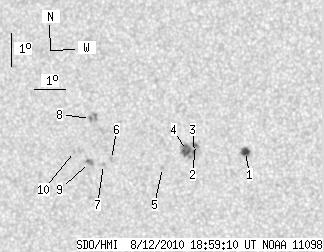

back to the solar disc SDO HMI 2010-08-12 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.87 | 6.22 | 2.49 | 3.19 | 14.14 | 305.26 | -12.82 | 57.81 | 0.2554 | -1071.8 | -917.4 | |
| 1.89 | 18.12 | 0.98 | 9.35 | 14.31 | 303.64 | -14.44 | 60.06 | 0.2801 | -853.9 | -798.7 | |
| 0.99 | -2.00 | 0.51 | -2.00 | 14.06 | 303.62 | -14.46 | 60.88 | 0.2785 | -1073.2 | 999999 | |
| 7.66 | -2.00 | 3.96 | -2.00 | 14.12 | 303.36 | -14.72 | 61.11 | 0.2827 | -1004.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 13.57 | 302.62 | -15.46 | 63.89 | 0.2899 | -771.0 | -603.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 13.77 | 300.94 | -17.14 | 65.37 | 0.3162 | 779.0 | 595.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.61 | 300.69 | -17.39 | 66.12 | 0.3190 | 1005.0 | 743.5 | |
| 1.26 | 6.13 | 0.66 | 3.22 | 15.00 | 300.15 | -17.93 | 62.77 | 0.3358 | 909.0 | 762.7 | |
| 0.00 | 4.24 | 0.00 | 2.22 | 13.65 | 300.23 | -17.85 | 66.48 | 0.3263 | 1207.0 | 928.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.97 | 299.71 | -18.37 | 66.11 | 0.3359 | 640.0 | 527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
