SDO HMI 2010-08-12 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.51 | 43.81 | 7.96 | 22.63 | 14.12 | 302.39 | -14.58 | 60.57 | 0.2810 | -117.0 | 85.0 | |
|
previous
or next observation for the same group /

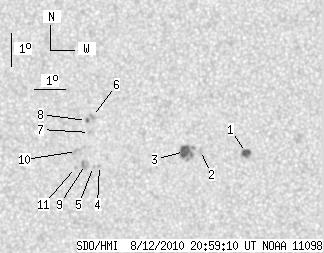

back to the solar disc SDO HMI 2010-08-12 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.23 | 6.04 | 2.67 | 3.08 | 14.14 | 305.40 | -11.57 | 55.24 | 0.2377 | -1053.3 | -980.1 | |
| 0.00 | 2.98 | 0.00 | 1.53 | 14.17 | 303.93 | -13.04 | 58.14 | 0.2588 | -890.0 | -697.5 | |
| 9.02 | 16.86 | 4.63 | 8.66 | 14.13 | 303.41 | -13.56 | 59.20 | 0.2658 | -982.1 | -900.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.62 | 300.70 | -16.27 | 64.82 | 0.3023 | 690.0 | 616.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 13.58 | 300.50 | -16.47 | 65.16 | 0.3049 | 868.0 | 648.9 | |
| 0.00 | 2.61 | 0.00 | 1.37 | 15.11 | 300.35 | -16.62 | 60.84 | 0.3175 | 889.0 | 762.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 14.62 | 300.29 | -16.68 | 62.34 | 0.3149 | 835.0 | 637.2 | |
| 1.26 | 1.53 | 0.66 | 0.80 | 14.99 | 300.17 | -16.80 | 61.45 | 0.3193 | 857.7 | 758.0 | |
| 0.00 | 5.77 | 0.00 | 3.00 | 13.64 | 300.24 | -16.73 | 65.31 | 0.3093 | 920.0 | 803.8 | |
| 0.00 | 3.70 | 0.00 | 1.93 | 14.03 | 299.91 | -17.05 | 64.54 | 0.3165 | 704.0 | 690.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.54 | 299.92 | -17.05 | 65.99 | 0.3134 | 910.0 | 660.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
