SDO HMI 2010-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 151.02 | 726.57 | 90.71 | 437.17 | 13.69 | 172.27 | 32.98 | 290.81 | 0.5669 | 24.4 | -25.1 | |
|
previous
or next observation for the same group /

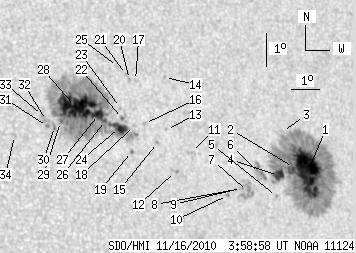

back to the solar disc SDO HMI 2010-11-16 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.21 | 354.30 | 40.14 | 221.19 | 12.80 | 175.89 | 36.60 | 287.56 | 0.6121 | -1117.1 | -341.9 | |
| 2.41 | -1.00 | 1.50 | -1.00 | 12.94 | 175.39 | 36.09 | 287.96 | 0.6058 | -1155.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 14.03 | 175.16 | 35.87 | 289.81 | 0.6065 | -125.0 | -110.3 | |
| 8.42 | -1.00 | 5.19 | -1.00 | 12.71 | 174.78 | 35.49 | 287.81 | 0.5971 | -1073.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 12.08 | 174.61 | 35.32 | 286.84 | 0.5929 | -666.0 | -560.1 | |
| 0.00 | 11.00 | 0.00 | 6.72 | 12.79 | 174.09 | 34.80 | 288.20 | 0.5880 | -539.0 | -639.7 | |
| 0.00 | 12.46 | 0.00 | 7.56 | 12.26 | 173.56 | 34.27 | 287.51 | 0.5792 | -660.0 | -741.0 | |
| 0.00 | 1.55 | 0.00 | 0.94 | 12.36 | 173.36 | 34.07 | 287.75 | 0.5767 | -890.0 | -789.1 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 12.33 | 173.13 | 33.84 | 287.80 | 0.5736 | -785.0 | -672.5 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 12.16 | 172.82 | 33.52 | 287.63 | 0.5687 | -842.0 | -688.1 | |
| 0.00 | 2.75 | 0.00 | 1.64 | 13.49 | 171.71 | 32.41 | 290.40 | 0.5583 | 721.0 | 468.1 | |
| 0.00 | 1.98 | 0.00 | 1.17 | 12.93 | 171.05 | 31.76 | 289.73 | 0.5471 | -698.0 | -652.3 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 14.20 | 170.92 | 31.62 | 292.03 | 0.5505 | 682.0 | 522.6 | |
| 0.00 | 1.46 | 0.00 | 0.87 | 15.78 | 171.11 | 31.81 | 294.64 | 0.5603 | 664.0 | 540.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 13.82 | 170.53 | 31.24 | 291.56 | 0.5437 | 756.0 | 586.4 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 14.40 | 170.16 | 30.87 | 292.79 | 0.5411 | 676.0 | 477.7 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 15.71 | 170.05 | 30.75 | 295.15 | 0.5459 | 553.0 | 438.2 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 14.35 | 169.79 | 30.50 | 292.91 | 0.5359 | 489.0 | 364.4 | |
| 0.34 | 1.03 | 0.20 | 0.60 | 13.57 | 169.57 | 30.28 | 291.63 | 0.5294 | -675.2 | -520.5 | |
| 0.00 | 1.55 | 0.00 | 0.91 | 15.75 | 169.84 | 30.55 | 295.34 | 0.5433 | 686.0 | 492.5 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 15.90 | 169.76 | 30.46 | 295.66 | 0.5431 | 688.0 | 562.7 | |
| 1.29 | 2.58 | 0.75 | 1.51 | 14.57 | 169.40 | 30.11 | 293.53 | 0.5316 | 640.6 | 440.6 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 14.91 | 169.38 | 30.09 | 294.14 | 0.5330 | 493.0 | 413.8 | |
| 12.21 | 309.78 | 7.11 | 178.79 | 14.30 | 169.25 | 29.96 | 293.13 | 0.5284 | 933.0 | 402.1 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 16.15 | 169.48 | 30.18 | 296.27 | 0.5407 | 598.0 | 449.3 | |
| 1.46 | -24.00 | 0.85 | -24.00 | 14.53 | 168.79 | 29.50 | 293.81 | 0.5231 | 921.9 | 999999 | |
| 8.25 | -24.00 | 4.78 | -24.00 | 14.71 | 168.57 | 29.28 | 294.29 | 0.5211 | 1044.2 | 999999 | |
| 51.40 | -24.00 | 29.60 | -24.00 | 14.97 | 167.81 | 28.51 | 295.26 | 0.5120 | 1221.1 | 999999 | |
| 1.03 | -24.00 | 0.59 | -24.00 | 14.53 | 167.22 | 27.93 | 294.84 | 0.5016 | 902.2 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.62 | 14.38 | 166.99 | 27.70 | 294.72 | 0.4977 | 1048.0 | 832.5 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 14.39 | 166.75 | 27.46 | 294.89 | 0.4944 | 1000.0 | 892.9 | |
| 0.00 | 2.23 | 0.00 | 1.27 | 14.57 | 166.74 | 27.45 | 295.24 | 0.4952 | 938.0 | 821.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 14.73 | 166.62 | 27.33 | 295.62 | 0.4945 | 864.0 | 774.3 | |
| 0.00 | 2.32 | 0.00 | 1.31 | 14.14 | 165.59 | 26.29 | 295.25 | 0.4769 | 561.0 | 487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
