SDO HMI 2010-11-16 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.94 | 714.97 | 83.99 | 435.91 | 13.72 | 172.30 | 34.10 | 290.36 | 0.5821 | -176.3 | 25.0 | |
|
previous
or next observation for the same group /

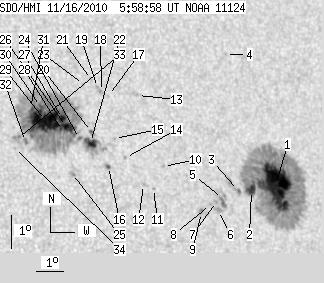

back to the solar disc SDO HMI 2010-11-16 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.09 | 352.67 | 46.98 | 223.59 | 12.82 | 175.88 | 37.68 | 287.25 | 0.6263 | -1139.5 | -295.4 | |
| 7.22 | -1.00 | 4.52 | -1.00 | 12.70 | 174.94 | 36.74 | 287.37 | 0.6137 | -1111.1 | 999999 | |
| 0.52 | 8.68 | 0.32 | 5.39 | 12.71 | 174.44 | 36.25 | 287.56 | 0.6072 | -1010.2 | -687.2 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 16.84 | 174.75 | 36.56 | 293.92 | 0.6259 | -472.0 | -382.0 | |
| 0.00 | 8.34 | 0.00 | 5.14 | 12.49 | 173.81 | 35.61 | 287.42 | 0.5980 | -839.0 | -758.8 | |
| 0.00 | 4.04 | 0.00 | 2.48 | 12.13 | 173.60 | 35.40 | 286.90 | 0.5942 | -868.0 | -733.1 | |
| 0.00 | 1.46 | 0.00 | 0.90 | 12.40 | 173.57 | 35.37 | 287.36 | 0.5946 | -921.0 | -823.2 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 12.32 | 173.33 | 35.13 | 287.31 | 0.5911 | -784.0 | -654.9 | |
| 0.00 | 2.84 | 0.00 | 1.73 | 12.09 | 172.96 | 34.76 | 287.06 | 0.5855 | -612.0 | -524.5 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 13.51 | 171.78 | 33.58 | 289.92 | 0.5743 | 696.0 | 571.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 12.85 | 171.32 | 33.12 | 289.01 | 0.5656 | 437.0 | 408.2 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 12.98 | 170.97 | 32.77 | 289.38 | 0.5614 | -698.0 | -555.2 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 15.68 | 171.20 | 33.00 | 293.83 | 0.5755 | 673.0 | 461.5 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 13.81 | 170.45 | 32.25 | 291.06 | 0.5574 | 751.0 | 500.3 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 14.39 | 170.14 | 31.94 | 292.22 | 0.5558 | 586.0 | 440.4 | |
| 1.72 | 2.49 | 1.02 | 1.47 | 13.55 | 169.80 | 31.60 | 290.94 | 0.5475 | -668.7 | -500.0 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 15.70 | 170.15 | 31.95 | 294.45 | 0.5618 | 553.0 | 485.3 | |
| 0.00 | 1.46 | 0.00 | 0.87 | 15.83 | 169.91 | 31.71 | 294.80 | 0.5593 | 690.0 | 612.2 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 15.96 | 169.79 | 31.59 | 295.08 | 0.5583 | 621.0 | 439.9 | |
| 0.86 | 3.52 | 0.51 | 2.08 | 14.63 | 169.35 | 31.15 | 293.05 | 0.5461 | 563.3 | 493.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 16.20 | 169.62 | 31.42 | 295.61 | 0.5573 | 436.0 | 375.1 | |
| 7.99 | 305.66 | 4.71 | 178.22 | 14.29 | 169.26 | 31.07 | 292.52 | 0.5434 | 930.9 | 438.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 16.06 | 169.30 | 31.10 | 295.55 | 0.5524 | 787.0 | 473.3 | |
| 1.38 | -22.00 | 0.81 | -22.00 | 14.42 | 168.89 | 30.69 | 292.95 | 0.5390 | 864.6 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.55 | 13.37 | 168.49 | 30.29 | 291.29 | 0.5288 | -479.0 | -481.3 | |
| 2.41 | -22.00 | 1.41 | -22.00 | 14.80 | 168.49 | 30.29 | 293.85 | 0.5353 | 1134.8 | 999999 | |
| 3.18 | -22.00 | 1.86 | -22.00 | 15.04 | 168.38 | 30.18 | 294.35 | 0.5351 | 1029.6 | 999999 | |
| 0.69 | -22.00 | 0.40 | -22.00 | 14.68 | 168.33 | 30.13 | 293.74 | 0.5325 | 1062.0 | 999999 | |
| 34.90 | -22.00 | 20.30 | -22.00 | 15.00 | 167.77 | 29.57 | 294.64 | 0.5266 | 1294.0 | 999999 | |
| 1.72 | -22.00 | 1.00 | -22.00 | 15.43 | 167.66 | 29.46 | 295.48 | 0.5273 | 720.5 | 999999 | |
| 0.26 | -22.00 | 0.15 | -22.00 | 15.37 | 167.30 | 29.10 | 295.62 | 0.5222 | 973.3 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.49 | 14.38 | 166.98 | 28.78 | 294.02 | 0.5126 | 1012.0 | 897.5 | |
| 0.00 | 4.81 | 0.00 | 2.77 | 14.47 | 166.71 | 28.51 | 294.37 | 0.5095 | 795.0 | 797.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 14.17 | 166.57 | 28.37 | 293.90 | 0.5059 | 692.0 | 535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
