SDO HMI 2010-11-16 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.18 | 676.68 | 88.24 | 469.11 | 13.71 | 172.74 | 43.33 | 287.22 | 0.6988 | -79.2 | -26.1 | |
|
previous
or next observation for the same group /

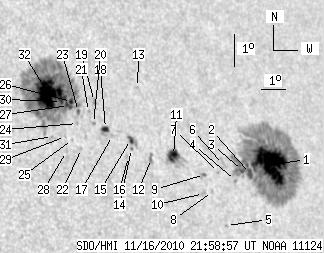

back to the solar disc SDO HMI 2010-11-16 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.96 | 349.50 | 42.52 | 255.96 | 12.82 | 176.35 | 46.94 | 284.99 | 0.7399 | -946.0 | -312.6 | |
| 4.55 | -1.00 | 3.28 | -1.00 | 12.58 | 175.36 | 45.95 | 284.85 | 0.7281 | -824.3 | 999999 | |
| 2.66 | -1.00 | 1.91 | -1.00 | 12.68 | 175.04 | 45.63 | 285.06 | 0.7245 | -892.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.92 | 12.39 | 174.67 | 45.26 | 284.73 | 0.7197 | -640.0 | -570.7 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 11.06 | 174.00 | 44.59 | 283.00 | 0.7095 | -727.0 | -640.4 | |
| 0.00 | 5.32 | 0.00 | 3.76 | 12.89 | 174.26 | 44.85 | 285.50 | 0.7158 | -402.0 | -561.7 | |
| 0.00 | 0.94 | 0.00 | 0.66 | 12.65 | 173.99 | 44.58 | 285.24 | 0.7122 | -673.0 | -545.7 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 12.09 | 173.62 | 44.21 | 284.53 | 0.7067 | -628.0 | -512.5 | |
| 1.29 | 2.83 | 0.90 | 1.97 | 12.61 | 173.39 | 43.98 | 285.31 | 0.7049 | -659.4 | -541.6 | |
| 0.00 | 2.75 | 0.00 | 1.91 | 12.04 | 173.23 | 43.82 | 284.55 | 0.7019 | -774.0 | -503.9 | |
| 9.88 | 23.44 | 6.75 | 16.05 | 13.22 | 172.22 | 42.81 | 286.45 | 0.6921 | 633.7 | -30.4 | |
| 0.00 | 3.35 | 0.00 | 2.26 | 13.16 | 171.30 | 41.89 | 286.60 | 0.6808 | 716.0 | 564.2 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 15.32 | 171.21 | 41.80 | 289.73 | 0.6853 | 568.0 | 437.5 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 13.48 | 170.55 | 41.14 | 287.27 | 0.6723 | -462.0 | -364.9 | |
| 2.75 | 6.70 | 1.84 | 4.48 | 13.76 | 170.57 | 41.16 | 287.67 | 0.6732 | -655.5 | -20.5 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 13.25 | 170.38 | 40.97 | 286.97 | 0.6696 | -450.0 | -469.8 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 13.90 | 169.87 | 40.46 | 288.08 | 0.6650 | -665.0 | -478.2 | |
| 2.92 | 6.70 | 1.93 | 4.41 | 14.12 | 169.63 | 40.22 | 288.48 | 0.6627 | 552.7 | -85.7 | |
| 0.00 | 2.32 | 0.00 | 1.53 | 14.95 | 169.37 | 39.96 | 289.79 | 0.6619 | 521.0 | 386.2 | |
| 0.00 | 1.37 | 0.00 | 0.90 | 14.28 | 169.19 | 39.78 | 288.87 | 0.6576 | 682.0 | 558.4 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 14.65 | 169.07 | 39.66 | 289.45 | 0.6572 | 465.0 | 412.4 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 13.54 | 168.56 | 39.15 | 287.96 | 0.6476 | 648.0 | 507.5 | |
| 1.03 | 257.79 | 0.67 | 166.11 | 14.66 | 168.67 | 39.26 | 289.61 | 0.6523 | 606.5 | 422.6 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 14.30 | 168.56 | 39.15 | 289.10 | 0.6497 | 556.0 | 447.6 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 13.82 | 168.26 | 38.85 | 288.48 | 0.6446 | 588.0 | 390.6 | |
| 1.89 | -23.00 | 1.23 | -23.00 | 14.97 | 168.46 | 39.05 | 290.14 | 0.6506 | 730.1 | 999999 | |
| 1.29 | -23.00 | 0.84 | -23.00 | 14.85 | 168.32 | 38.91 | 290.02 | 0.6485 | 802.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 13.47 | 167.96 | 38.55 | 288.04 | 0.6397 | -642.0 | -509.0 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 13.92 | 168.01 | 38.60 | 288.72 | 0.6416 | 451.0 | 321.9 | |
| 1.03 | -23.00 | 0.67 | -23.00 | 14.98 | 168.07 | 38.66 | 290.30 | 0.6458 | 831.8 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 13.94 | 167.50 | 38.09 | 288.91 | 0.6353 | 673.0 | 506.6 | |
| 39.93 | -23.00 | 25.70 | -23.00 | 15.24 | 167.61 | 38.20 | 290.86 | 0.6409 | 1174.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
