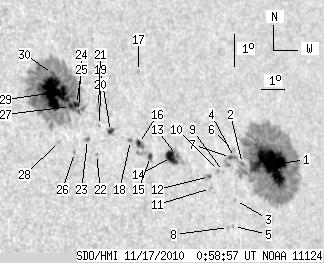

SDO HMI 2010-11-17 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.27 | 660.88 | 94.01 | 471.42 | 13.76 | 172.80 | 45.04 | 286.89 | 0.7191 | -65.4 | -29.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-11-17 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.70 | 341.70 | 45.24 | 258.57 | 12.84 | 176.40 | 48.64 | 284.73 | 0.7590 | -916.8 | -312.5 | |
| 0.94 | -1.00 | 0.70 | -1.00 | 12.92 | 175.09 | 47.34 | 285.06 | 0.7446 | -651.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 11.82 | 174.52 | 46.76 | 283.69 | 0.7363 | -624.0 | -484.8 | |
| 0.26 | -1.00 | 0.19 | -1.00 | 13.11 | 174.78 | 47.02 | 285.38 | 0.7414 | -755.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 11.04 | 174.26 | 46.51 | 282.68 | 0.7322 | -580.0 | -477.3 | |
| 0.00 | 2.15 | 0.00 | 1.58 | 13.32 | 174.79 | 47.03 | 285.66 | 0.7418 | -429.0 | -499.9 | |
| 1.46 | -1.00 | 1.07 | -1.00 | 13.11 | 174.60 | 46.85 | 285.42 | 0.7394 | -774.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 11.02 | 174.04 | 46.28 | 282.69 | 0.7295 | -758.0 | -639.9 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 12.70 | 174.19 | 46.43 | 284.95 | 0.7340 | -729.0 | -543.1 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 12.74 | 173.98 | 46.22 | 285.04 | 0.7316 | -742.0 | -633.8 | |
| 0.00 | 1.55 | 0.00 | 1.11 | 12.21 | 173.51 | 45.75 | 284.41 | 0.7252 | -723.0 | -635.4 | |
| 1.20 | 3.44 | 0.86 | 2.46 | 12.57 | 173.54 | 45.79 | 284.90 | 0.7263 | -717.7 | -553.6 | |
| 0.86 | 20.36 | 0.60 | 14.29 | 13.25 | 172.27 | 44.52 | 286.10 | 0.7127 | 380.0 | 103.5 | |
| 9.45 | -13.00 | 6.62 | -13.00 | 13.19 | 172.05 | 44.29 | 286.08 | 0.7099 | 640.8 | 999999 | |
| 2.32 | 8.50 | 1.60 | 5.86 | 13.25 | 171.17 | 43.41 | 286.36 | 0.6995 | 665.6 | 373.1 | |
| 2.23 | 5.58 | 1.53 | 3.84 | 13.66 | 170.76 | 43.00 | 287.04 | 0.6955 | -398.2 | 446.2 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 15.83 | 171.30 | 43.54 | 289.94 | 0.7074 | 531.0 | 453.6 | |
| 0.43 | 1.89 | 0.29 | 1.29 | 13.76 | 170.44 | 42.69 | 287.27 | 0.6920 | -691.0 | -559.7 | |
| 2.66 | 3.69 | 1.80 | 2.50 | 14.05 | 169.68 | 41.93 | 287.90 | 0.6835 | 512.9 | 188.4 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 14.25 | 169.28 | 41.52 | 288.30 | 0.6790 | 564.0 | 409.9 | |
| 0.00 | 3.69 | 0.00 | 2.49 | 14.79 | 169.36 | 41.60 | 289.06 | 0.6815 | 383.0 | 401.8 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 13.38 | 168.96 | 41.21 | 287.12 | 0.6730 | 396.0 | 358.0 | |
| 0.43 | 1.80 | 0.29 | 1.20 | 13.84 | 168.70 | 40.94 | 287.88 | 0.6709 | 633.6 | 474.8 | |
| 0.94 | 254.77 | 0.63 | 168.05 | 14.70 | 168.52 | 40.76 | 289.18 | 0.6711 | 645.0 | 401.7 | |
| 1.72 | -24.00 | 1.14 | -24.00 | 14.91 | 168.49 | 40.73 | 289.50 | 0.6713 | 704.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.96 | 13.47 | 168.09 | 40.34 | 287.50 | 0.6624 | -548.0 | -432.7 | |
| 1.80 | -24.00 | 1.20 | -24.00 | 14.86 | 168.23 | 40.48 | 289.51 | 0.6680 | 712.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.01 | 13.81 | 167.56 | 39.81 | 288.18 | 0.6567 | 704.0 | 438.9 | |
| 44.41 | -24.00 | 29.28 | -24.00 | 15.30 | 167.69 | 39.93 | 290.34 | 0.6627 | 1065.2 | 999999 | |
| 1.46 | -24.00 | 0.97 | -24.00 | 15.88 | 167.74 | 39.99 | 291.17 | 0.6652 | 622.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
