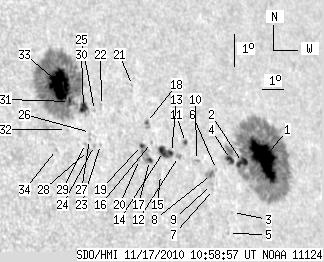

SDO HMI 2010-11-17 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.72 | 626.78 | 100.06 | 499.19 | 13.80 | 173.02 | 50.74 | 285.81 | 0.7820 | -105.8 | 10.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-11-17 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.02 | 329.42 | 46.35 | 282.28 | 12.93 | 176.64 | 54.36 | 284.04 | 0.8187 | -952.7 | -212.2 | |
| 6.53 | -1.00 | 5.45 | -1.00 | 12.85 | 175.53 | 53.24 | 284.08 | 0.8076 | -923.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.63 | 11.37 | 174.60 | 52.32 | 282.36 | 0.7966 | -534.0 | -459.3 | |
| 3.95 | -1.00 | 3.26 | -1.00 | 12.96 | 174.95 | 52.67 | 284.30 | 0.8019 | -912.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 10.75 | 174.25 | 51.96 | 281.62 | 0.7923 | -525.0 | -488.1 | |
| 0.00 | 0.60 | 0.00 | 0.49 | 12.68 | 174.17 | 51.89 | 284.07 | 0.7936 | -599.0 | -546.7 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 12.09 | 173.86 | 51.57 | 283.36 | 0.7896 | -525.0 | -463.8 | |
| 1.63 | 5.58 | 1.31 | 4.49 | 12.54 | 173.89 | 51.60 | 283.93 | 0.7905 | -769.4 | -660.1 | |
| 0.00 | 1.63 | 0.00 | 1.31 | 12.24 | 173.80 | 51.52 | 283.56 | 0.7892 | -750.0 | -569.9 | |
| 0.00 | 1.89 | 0.00 | 1.50 | 12.98 | 173.28 | 50.99 | 284.58 | 0.7847 | 360.0 | 290.2 | |
| 1.46 | 1.80 | 1.15 | 1.43 | 13.54 | 172.91 | 50.62 | 285.35 | 0.7816 | -547.4 | -434.6 | |
| 0.00 | 2.83 | 0.00 | 2.22 | 13.13 | 172.45 | 50.17 | 284.90 | 0.7762 | 458.0 | 318.0 | |
| 1.55 | 11.34 | 1.20 | 8.76 | 13.27 | 172.16 | 49.87 | 285.12 | 0.7732 | 448.8 | 519.2 | |
| 6.35 | -13.00 | 4.91 | -13.00 | 13.31 | 171.79 | 49.50 | 285.24 | 0.7693 | 667.2 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.26 | 12.62 | 171.46 | 49.18 | 284.41 | 0.7648 | 450.0 | 381.5 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 13.60 | 171.31 | 49.02 | 285.70 | 0.7646 | 367.0 | 351.5 | |
| 1.80 | 13.14 | 1.37 | 9.97 | 13.06 | 171.07 | 48.78 | 285.04 | 0.7611 | 822.8 | 326.6 | |
| 1.46 | 3.61 | 1.12 | 2.76 | 14.21 | 171.25 | 48.96 | 286.50 | 0.7650 | 534.8 | 465.4 | |
| 1.46 | -17.00 | 1.11 | -17.00 | 13.52 | 170.82 | 48.54 | 285.69 | 0.7591 | -503.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.71 | 13.10 | 170.62 | 48.33 | 285.18 | 0.7562 | -575.0 | -442.7 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 15.34 | 170.94 | 48.65 | 288.04 | 0.7637 | 437.0 | 366.2 | |
| 0.00 | 0.94 | 0.00 | 0.70 | 14.78 | 169.35 | 47.06 | 287.66 | 0.7452 | 397.0 | 374.1 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 13.61 | 168.98 | 46.70 | 286.18 | 0.7388 | 260.0 | 233.2 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 13.59 | 168.71 | 46.42 | 286.21 | 0.7357 | 479.0 | 383.9 | |
| 0.00 | 1.29 | 0.00 | 0.95 | 14.64 | 168.99 | 46.71 | 287.56 | 0.7410 | 390.0 | 262.1 | |
| 0.00 | 0.34 | 0.00 | 0.25 | 13.99 | 168.64 | 46.35 | 286.76 | 0.7356 | 609.0 | 508.5 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 13.78 | 168.54 | 46.25 | 286.50 | 0.7341 | 489.0 | 487.6 | |
| 0.00 | 1.37 | 0.00 | 1.00 | 13.45 | 168.41 | 46.12 | 286.08 | 0.7320 | -457.0 | -259.6 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 13.66 | 168.33 | 46.04 | 286.39 | 0.7315 | 516.0 | 347.8 | |
| 5.24 | 240.11 | 3.82 | 172.87 | 14.75 | 168.53 | 46.24 | 287.81 | 0.7360 | 601.8 | 346.2 | |
| 2.23 | -30.00 | 1.61 | -30.00 | 14.95 | 167.96 | 45.68 | 288.22 | 0.7300 | 724.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 14.11 | 167.61 | 45.32 | 287.16 | 0.7241 | 607.0 | 498.7 | |
| 38.04 | -30.00 | 27.40 | -30.00 | 15.48 | 167.72 | 45.43 | 288.99 | 0.7284 | 1100.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 13.52 | 167.03 | 44.74 | 286.49 | 0.7161 | 557.0 | 465.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
