SDO HMI 2010-11-18 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.95 | 362.54 | 87.57 | 472.43 | 13.74 | 173.81 | 67.45 | 283.95 | 0.9234 | -46.7 | -0.9 | |
|
previous
or next observation for the same group /

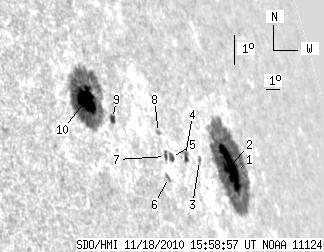

back to the solar disc SDO HMI 2010-11-18 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.15 | 196.80 | 7.88 | 295.31 | 12.77 | 177.55 | 71.19 | 282.66 | 0.9477 | 313.2 | -111.2 | |
| 29.51 | -1.00 | 44.00 | -1.00 | 12.97 | 177.03 | 70.67 | 282.89 | 0.9448 | -719.9 | 999999 | |
| 0.00 | 2.83 | 0.00 | 3.79 | 13.25 | 174.57 | 68.21 | 283.29 | 0.9303 | -483.0 | -372.1 | |
| 0.00 | 4.72 | 0.00 | 6.05 | 13.44 | 173.54 | 67.18 | 283.55 | 0.9239 | -433.0 | -330.2 | |
| 3.09 | 3.95 | 3.79 | 4.84 | 13.42 | 172.44 | 66.08 | 283.60 | 0.9166 | 264.5 | 48.4 | |
| 0.00 | 2.66 | 0.00 | 3.19 | 12.83 | 171.91 | 65.55 | 282.99 | 0.9127 | 503.0 | 366.0 | |
| 1.72 | 3.60 | 2.07 | 4.36 | 13.47 | 172.02 | 65.66 | 283.68 | 0.9137 | 468.9 | 359.6 | |
| 0.00 | 1.97 | 0.00 | 2.38 | 14.20 | 171.90 | 65.54 | 284.49 | 0.9132 | 148.0 | 14.6 | |
| 3.60 | 4.03 | 3.92 | 4.38 | 14.74 | 168.93 | 62.57 | 285.32 | 0.8920 | 315.2 | 229.6 | |
| 24.88 | 141.98 | 25.91 | 148.13 | 15.37 | 167.55 | 61.19 | 286.17 | 0.8816 | 848.6 | 228.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
