SDO HMI 2010-11-19 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.53 | 123.83 | 73.64 | 428.99 | 13.52 | 173.99 | 81.91 | 283.38 | 0.9873 | 413.9 | 32.5 | |
|
previous
or next observation for the same group /

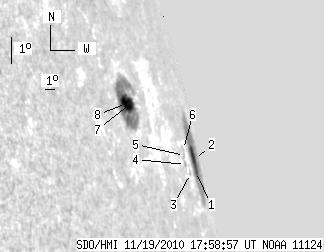

back to the solar disc SDO HMI 2010-11-19 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.66 | 49.31 | 12.86 | 271.30 | 12.57 | 176.67 | 84.60 | 282.41 | 0.9954 | -261.5 | -24.3 | |
| 6.86 | -1.00 | 36.93 | -1.00 | 12.91 | 177.23 | 85.15 | 282.76 | 0.9962 | 696.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 4.41 | 12.57 | 175.18 | 83.11 | 282.38 | 0.9926 | -119.0 | -162.5 | |
| 0.00 | 1.89 | 0.00 | 6.75 | 12.87 | 174.48 | 82.41 | 282.67 | 0.9911 | -410.0 | -373.9 | |
| 0.00 | 1.46 | 0.00 | 5.38 | 13.13 | 174.72 | 82.65 | 282.94 | 0.9916 | -484.0 | -420.5 | |
| 0.00 | 1.29 | 0.00 | 4.78 | 13.31 | 174.82 | 82.74 | 283.13 | 0.9918 | -300.0 | -283.3 | |
| 2.06 | 68.77 | 4.24 | 136.37 | 15.01 | 168.24 | 76.16 | 284.89 | 0.9716 | -176.6 | 211.3 | |
| 9.95 | -7.00 | 19.61 | -7.00 | 15.00 | 167.59 | 75.52 | 284.90 | 0.9689 | 604.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
